Security Operations

Cloud-Native DCS implements authentication, authorization, and electronic signatures for pharmaceutical and regulated manufacturing environments.

Authentication

OIDC Authentication (Production)

The gateway supports OpenID Connect (OIDC) for production authentication. Any OIDC-compliant identity provider works (Keycloak, Auth0, Azure AD, Okta, Dex).

The OIDC path end to end: an unauthenticated request bounced to the login page, the PKCE hop to the plant's own identity provider, the header badge naming identity and role on return, and dcs login completing the device-code flow against the same provider.

Configuration:

Parameter	Description
Mode	oidc for production, none for development
IssuerURL	OIDC provider discovery URL
ClientID	OAuth2 client ID
Audience	Expected JWT audience (defaults to ClientID)
AllowedOrigins	CORS origins (empty = same-origin only)

Authentication flow:

1. Client sends request with Authorization: Bearer <token> header
2. Gateway middleware extracts and verifies the JWT token
3. Token is validated against the OIDC provider's public keys
4. Claims are extracted: sub, email, name, groups
5. UserIdentity is stored in the request context

LDAP Authentication

For plants whose directory cannot expose an OIDC endpoint, the gateway supports direct LDAP / Active Directory bind (gateway.auth.mode: ldap). The gateway verifies the username and password against the directory, resolves the user's groups, and issues its own session JWT (gateway.auth.sessionDuration, default 8h). The login page and dcs login both support this flow.

Helm value (gateway.auth.ldap.*)	Purpose
url	LDAP server URL — use ldaps://host:636, or ldap://host:389 with startTLS: true
bindDN	Service account DN for user/group searches (empty = anonymous bind)
bindPasswordSecret	Name of a Kubernetes Secret holding the bind password under the key password
userSearchBase / userSearchFilter	Where and how to find users; the filter takes a {{.Username}} placeholder (default matches AD sAMAccountName)
groupSearchBase / groupSearchFilter	Where and how to find a user's groups; when groupSearchBase is empty, groups are read from the user's memberOf attribute instead
groupMappings	Maps LDAP group CNs or DNs to the DCS role groups below (e.g. CN=DCS-Admins,OU=Groups,DC=example,DC=com: dcs-admin)
startTLS / tlsCA	Upgrade a plain connection with STARTTLS; CA certificate for verifying the LDAP server

Never use plain ldap:// without startTLS in production. The bind sends the user's password to the directory. Rotation of the bind password is covered in the rotation runbook.

Group-to-role authorization after login is identical to OIDC: the mapped DCS groups feed the same RBAC model.

Login lockout (IEC 62443 SR 1.11)

The LDAP path enforces consecutive-failed-attempt lockout (#974): after gateway.auth.lockout.maxFailures failures (default 5) within window (default 15 min), the account is locked for duration (default 15 min) or until an administrator clears it. dcs auth lockouts lists the current lockout state and dcs auth unlock <username> clears one early with the administrator's identity written to the trail (the underlying endpoints are GET /api/v1/auth/lockouts and DELETE /api/v1/auth/lockouts/{username}). Lockout responses are indistinguishable from bad-password responses to the caller. The audit trail (category access-control) records the truth, including the attempt that tripped the lock and every administrator unlock. In OIDC mode, attempt limiting belongs to the IdP (delegation D3 in the 4-2 register).

Only credential rejections count. A wrong password or an unknown username advances the counter. Directory faults (unreachable server, STARTTLS or service-account bind failure, search failure) do not, and they return 503 authentication backend unavailable where a credential rejection draws 401. Otherwise an LDAP outage would lock out every operator retrying through it, converting backend flakiness into a plant-wide account DoS. Those attempts are still audited, marked as not counted toward lockout.

The lockout end to end: five credential failures lock the account while every response stays the same generic 401, dcs auth lockouts and the audit trail carry the truth, and the administrator's audited dcs auth unlock clears it early.

Usernames are matched case- and whitespace-insensitively. Directories resolve alice, Alice and ALICE to one account. Lockout therefore keys them to one counter. An attacker would otherwise get maxFailures guesses per capitalization. The same canonicalization applies to exemptUsers and to the administrator unlock path, so a station configured as panel-operator stays exempt when it authenticates as Panel-Operator.

Essential-function carve-out (62443-3-3 Clause 4.2): accounts used for essential functions must never be locked out, even temporarily. List those accounts in gateway.auth.lockout.exemptUsers and compensate with physical/network access control. Machine identities (ServiceAccounts, mTLS, MQTT credentials, API keys) never traverse the login path and cannot be locked out by it.

System use notification (IEC 62443 SR 1.12)

gateway.auth.systemUseNotification configures a pre-authentication banner displayed by the login page and printed by dcs login before credentials are entered. Empty (the default) shows none. The text is deployment policy (e.g. authorized-use wording mandated by site legal).

Development Mode

When Mode is set to none, authentication is disabled and all requests are attributed to a synthetic principal, by default dev-user ("Development User") with admin privileges. This mode is not suitable for production.

The synthetic identity is configurable via gateway.auth.devIdentity (subject, name, groups, with empty fields keeping the defaults). It is stamped on server-side artifacts such as the approval-queue e-signature author, so a plausible name (e.g. Priya Nair (Process Engineer)) is useful for development and fixture screenshots. The override is ignored in oidc/ldap modes, where the identity always comes from the authenticated token.

One exception to the blanket attribution: a request that carries a valid gateway-issued session JWT (signed with the gateway's dcs-signing-key) is attributed to that token's identity in place of the synthetic principal. This is identity attribution only. Access control stays disabled, and an absent, malformed, or expired token silently falls back to the synthetic principal with no rejection. It lets multi-persona development stacks attribute individual actions (for example, a distinct proposer and approver on a ChangeRequest's e-signatures) without standing up an identity provider.

Setup Token (retired)

Until June 2026 the gateway accepted a pre-shared bootstrap token (gateway.auth.setupToken) for the /api/v1/setup* cluster-setup endpoints, with auto-invalidation on the first real login (threat-model row GW-E-02). Those endpoints were removed together with the in-product k3s join brokering (see ADR 0004), and the token mechanism was retired with them. No pre-auth configuration step is left in the gateway, and OIDC/LDAP settings arrive via flags or Helm values.

Historical InvalidateSetupToken AuditRecords from clusters bootstrapped before the retirement remain schema-valid and readable. The action enum value is kept for that reason but is never emitted by current gateways.

Exempt Routes

The following routes bypass authentication:

• OPTIONS (CORS preflight)
• /healthz, /readyz (health probes)
• / (dashboard index)
• /css/*, /js/* (static assets)
• /api/v1/auth/config GET (auth config for login flow)
• /api/v1/ws GET (WebSocket, auth handled inside the handler)
• /api/v1/terminal GET (terminal WebSocket, same)
• /api/v1/sites/{site}/events/sse GET (SSE stream, same)

The last three are exempt because a browser WebSocket cannot set an Authorization header. They accept a ?token= query parameter as well as the header, and the check happens inside the handler. The header remains the recommended form for any client that can send one, because a query string is written to the access log of every proxy in front of the gateway (see Presenting the token on a live transport). The exemption takes the rest of the middleware chain with it, including site scoping. Each handler therefore has to re-apply what the chain would have enforced. The terminal requires the engineer permission. The two real-time feeds apply the MES zone fence at connect, the caller's site scope on every message, and an action check per subscribed channel (see SCADA Integration). A gate added to the chain needs a decision about these routes, taken in the handler.

CLI Access Through an Authenticating Proxy

Some deployments place an authenticating proxy (a zero-trust access layer or SSO gateway) in front of the gateway, in addition to the gateway's own OIDC/LDAP authentication. A browser passes such a proxy with a session cookie. The dcs CLI has no cookie, so without configuration the proxy redirects every CLI request to its sign-in page and dcs login fails before it can even start:

Error: failed to fetch auth config: request to <gateway-host> was redirected
to <proxy-host> — the gateway appears to be behind an authenticating proxy ...

Teach the CLI to present the credential headers the proxy expects with dcs config set-header. Values may reference environment variables with ${VAR} syntax. Expansion happens when the CLI runs, so secrets stay out of ~/.dcs/config.yaml:

dcs config set-header <Header-Name> '${MY_PROXY_CREDENTIAL}'

For example, a deployment fronted by Cloudflare Access with a service token would configure:

dcs config set-header CF-Access-Client-Id '${CF_ACCESS_CLIENT_ID}'
dcs config set-header CF-Access-Client-Secret '${CF_ACCESS_CLIENT_SECRET}'

The configured headers are sent with every gateway request, ahead of the gateway's own login flow. They are sent only to the configured gateway host: the CLI refuses to follow any redirect that leaves that host, so proxy credentials and bearer tokens are never transmitted to another host. Which headers a proxy expects, and how their values are issued and rotated, is a property of the deployment. The product does not define them. Consult whoever operates the proxy in front of your gateway.

dcs config show lists configured header names but redacts literal values. ${VAR} references are shown as-is.

Authorization (RBAC)

Authorization is group-based. Groups are extracted from the OIDC token's groups claim (or mapped from LDAP groups). Each group that matches a role definition grants that role's permission set. The roles below are the shipped defaults, a product convention modeled on typical pharmaceutical plant staffing (ISA-88 itself defines no personnel role hierarchy). Deployments can replace them with their own role definitions. See Custom roles. The seven-permission vocabulary itself is a fixed product contract (ADR 0005).

The authoritative authorization mechanism is the route-level permission gate: every /api/v1 route registered in the gateway's routes.go is wrapped in withPermission(<permission>), which checks the user's resolved permissions against the active role table and returns 403 Forbidden on failure. The only exceptions are the exempt routes above and the WebSocket, SSE, and terminal endpoints. Those authenticate and authorize inside their handlers. Product code checks permissions, and only permissions. Handlers that need a tighter tier than their route gate add an in-handler RequirePermission check (e.g. the recipe-revision revert route is gated engineer but the handler requires supervise).

Group	Role	Typical permissions
dcs-admin	Administrator	Full administrative access — setup, gateway/auth configuration, MES API keys. Holds every permission in the hierarchy, so an admin can perform any operation.
dcs-supervisor	Supervisor	Recipe lifecycle approvals — approve, release, activate, and withdraw recipes; finalize batch records; manage the library. Recipe state changes require an electronic signature. Everything an engineer can do.
dcs-engineer	Process engineer	Engineering surface (/system): plant structure, recipe authoring (create / edit Draft), control-logic, equipment, and alarm-definition configuration. Cannot approve or release recipes. Everything a lead operator can do.
dcs-lead-operator	Lead operator	Everything a plant operator can do, plus launching equipment-oriented ad-hoc Operations (CIP, sampling, calibration). Gated separately from dcs-engineer so execution privilege does not imply engineering authoring privilege. See Ad-hoc Execution.
dcs-operator	Plant operator	Batch execution on the HMI: start batches against an Effective recipe, issue ISA-88 state commands, write tags, acknowledge alarms.
dcs-viewer	Read-only observer	Production records, trends, alarm history and the audit trail, and nothing else. Every GET the other roles can make, no state change of any kind. This is the grant for an identity that only observes: a SIEM collector polling the audit API, a reporting job, a read-only auditor login.

A user who opens a page their role does not cover is redirected to the highest-privilege page they can access, and told why on arrival:

System requires the "engineer" permission — you're signed in as Rosa Delgado · Operator

The nav links are deliberately visible even when refused. A visible, refused link surfaces a permission misconfiguration that a silently smaller app would hide, and on a shared operator station the real answer is often that someone else is still signed in.

The gateway header names the signed-in user and their role (for example "Priya Nair · Engineer"), resolved server-side from the active role table and served as roles on GET /api/v1/auth/session, most-privileged first when an identity holds several. It is display only. The UI still gates every page and control on permissions, and the role name gates nothing. Groups that name no configured role (the dcs-site-* site assignments, dcs-mes-integration) never appear there.

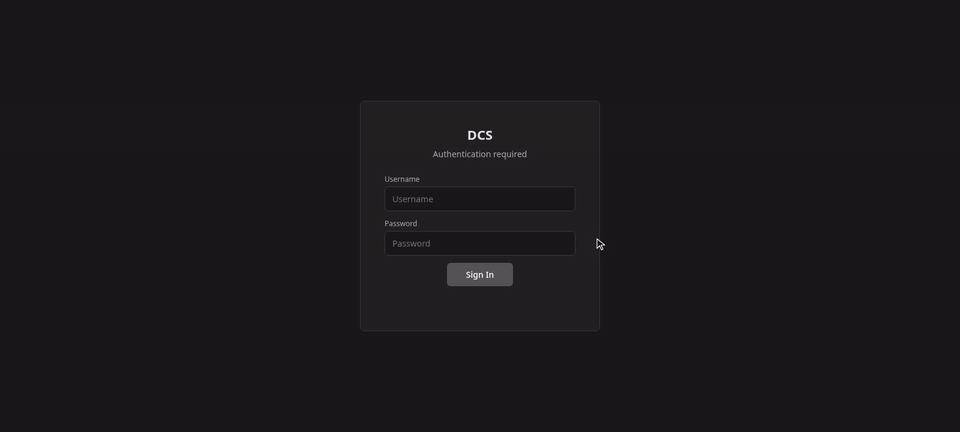

The clip below shows the roles as enforcement. Four directory personas sign in through the product's own login page and climb the permission ladder. Each one completes the work their own lane covers, and each one below admin is stopped at the next rung. The operator acknowledges a fermenter temperature alarm on the HMI, which is an operate-gated write accepted on her own authority. She then opens the parked operator prompt and finds that the Respond button is not rendered for her at all, because the decision it carries belongs to the rung above her. The supervisor answers that same prompt through the e-signature ceremony. He is then refused when he saves the recipe description fix the engineer will make a moment later. The engineer makes that edit and is refused in turn on the fermenter's I/O module record, which belongs to the platform admin. The admin makes the I/O module update, and the audit trail closes on every success under the name that made it.

Segregation of duties on change approval is a separate arc, and it is not in this clip. Change Control documents how the product refuses self-approval.

One plant, four hats: operator, supervisor, engineer, and admin working the same screens. Every rung of the permission ladder is drawn by the product itself.

Route-level permission gates

Route gates use a permission tier. Literal group names appear only in the role table. In the shipped default role table, each role grants its own tier plus every tier below it, so the hierarchy is cumulative: admin > supervisor > engineer > lead-operator > operator > viewer. The gate passes when any of the user's groups grants the required permission. The one exception to cumulativeness is interlock:bypass, a discrete, sensitive capability held by engineer and admin only. supervisor does not hold it, because bypassing a device interlock takes engineering knowledge of the protection being disabled (ADR 0010).

Permission	Gates (examples from routes.go)	Default roles granting it
read	All GET/list endpoints — production records, trends, audit trail. The tier is confined to reads, so a role holding read alone changes nothing: see The read tier is read-only	Every DCS group, plus MES API keys (within /api/v1/mes/ only — see below)
operate	Batch create/update and ISA-88 commands, alarm acknowledge/shelve/unshelve, tag and I/O writes, ad-hoc Phase execution	dcs-operator and above, plus MES API keys (within /api/v1/mes/ only)
operate-lead	Ad-hoc Operation and Unit Procedure execution, unit failover, batch prompt response (answering a parked PROMPT() is a batch-execution decision — delegable to lead operators without a supervisor)	dcs-lead-operator and above
engineer	Equipment-model, recipe, template, control-logic, and procedural-element CRUD; runtime diagnostics detail (service events/logs/restart; the terminal WebSocket applies the same permission inside its handler). The system-health summary is read-tier — every sub-app's header shows it to every role	dcs-engineer, dcs-supervisor, dcs-admin
supervise	Recipe approve/reject/release/activate/withdraw, batch-record finalize/review, change-request approval	dcs-supervisor, dcs-admin
admin	Controller and I/O-module configuration (the device/wiring layer: physical connectivity, protocol addressing, channel maps — including the same kinds via /api/v1/apply), bulk export (/api/v1/backup/*), MES API key management, session/lockout administration	dcs-admin
interlock:bypass	Set/clear a time-boxed device-interlock bypass on a ControlModule output (ADR 0010)	dcs-engineer, dcs-admin (not cumulative — supervisor does not hold it)

Because permissions derive only from group membership, an authenticated user who belongs to no DCS group holds no permissions at all. Even read-only GET requests are rejected with 403. Every user needs at least one DCS group. Production records, trends, and the audit trail (/data) are then readable by any of them, since every role includes read.

Examples:

• Batch start, ISA-88 commands, alarm acknowledge, tag writes — route gate operate. Operators, lead operators, engineers, supervisors, and admins all qualify through the cumulative hierarchy. No additional group membership is required.
• Procedural-element CRUD (Procedure, Unit Procedure, Operation, Phase) and alarm deletion: route gate engineer. Engineers, supervisors, and admins qualify. Operators do not.
• Recipe approval and release — route gate supervise: supervisors and admins only.
• Controller and I/O-module configuration — route gate admin. The device/wiring layer belongs to the OT platform administrator. Engineers keep the equipment model (units, control modules, templates), and they cannot change the physical connectivity beneath it (protocol addresses, channel maps).
• MES API key management — route gate admin.

The read tier is read-only

The read tier gates every GET, and a small number of POST routes sit there as well. A POST at read is a read whose request needs a body. Four of them ship:

Route	Why it stays a read
POST /api/v1/sites/{site}/batches/preflight	A dry run against a master recipe. It resolves the allocator preview and returns it, and it persists nothing.
POST /api/v1/demo/provision	Answers 403 unless the deployment enables demo auto-provisioning, which a production deployment leaves off.
POST /api/v1/signatures	Route-gated at read deliberately, so the handler's own supervisor check runs and its refusal is audited (§11.10). A read-only identity reaches the handler, and the handler refuses it.
POST /api/v1/admin/sites/{site}/heal	The same shape. The route gate is a baseline and the handler enforces admin-or-self.

The OPC UA discovery routes sat here too until #1551, on the reasoning that they mutate no CR. Mutating no CR is not the same as reading. The endpoint arrives in the request body, so the gateway opens an outbound OPC UA session to whatever host and port the caller names. The browse, search, and read verbs then pull an address space and live values back over it. They carry engineer now, which is the tier their sibling discovery:write always held. It is also the tier of the Device Discovery wizard, their only caller in the product. That wizard lives in the /system app, and the page gate there is display only. Before the move, every authenticated identity could reach the routes underneath it.

This is what makes dcs-viewer a read-only grant in fact and not only in name. A role holding read alone can call every route in the tier and change nothing. make lint-read-tier holds that property: a non-GET route registered at the read tier fails the build unless scripts/.read-tier-writes.tsv carries its verdict and the evidence behind it. The reasoning is recorded in ADR 0062.

MES integration fence

MES API-key identities hold read and operate permissions, but they are structurally confined to /api/v1/mes/: withAction rejects an MES-only identity (one holding dcs-mes-integration and no human role group) on every other route with 403, before the action check runs. Plant endpoints (tag and I/O writes, batch commands, alarm actions) are therefore never reachable with an integration credential, preserving IEC 62443 zone separation between the MES integration surface (ISA-95 Level 3/4) and plant control. Site scoping for MES keys is enforced inside the MES handlers (mesAuthGuard / mesReadGuard).

The confinement is enforced a second time inside action resolution: an MES-only identity resolves only actions carried by routes under the prefix, so the fence holds for consumers that never pass through the route gate: the WebSocket feeds, and the inspection surfaces that report an identity's effective action set. The two keys (route path, action name) are kept in agreement by make lint-docs-action-catalog. It fails if a route under /api/v1/mes/ carries an action the resolver does not treat as reachable.

In-handler permission checks

Some handlers carry a second RequirePermission check in addition to their route gate, either restating the gate's tier as defense in depth (recipe approval, batch-record review) or requiring a higher tier than the route's (recipe-revision revert). Like the route gates, these checks key on permissions alone. They work unchanged with custom roles.

// Supervise-tier action (e.g. approve a recipe, finalize a batch record).
if err := auth.RequirePermission(ctx, auth.PermSupervise); err != nil {
    http.Error(w, err.Error(), http.StatusForbidden)
    return
}

The AuditUser(ctx) function extracts user identity for audit logging, returning (userID, userName, sessionID).

Custom roles (deployment-defined)

Role definitions are deployment configuration (ADR 0005): a deployment may add roles, remove shipped ones, and tune the permission set each role grants, without code changes. Role names are free-form and matched against the user's IdP groups exactly like the shipped names.

The gateway loads role definitions from a YAML file given by --authz-roles-file (env: AUTHZ_ROLES_FILE). When the flag is absent, the built-in default table above applies and behavior is identical to previous releases. The file schema is a single roles map of role name → list of permissions. In a Helm deployment, set gateway.auth.roles. The chart renders it into a ConfigMap, mounts it, wires the flag, and a checksum annotation rolls the gateway pod whenever the roles change:

gateway:
  auth:
    roles:
      # A custom role: QA reviewers may read everything and approve/release,
      # but cannot operate equipment or author recipes.
      qa-reviewer: [read, supervise]
      # Non-empty roles REPLACE the shipped defaults — re-declare the
      # shipped roles you want to keep; omit the ones you want gone.
      dcs-admin: [read, operate, operate-lead, engineer, supervise, admin, interlock:bypass]
      dcs-operator: [read, operate]

Validation happens at startup and fails fast. The gateway refuses to start on an unknown permission name, a role that grants nothing, or an attempt to define dcs-mes-integration or a dcs-site-* name. It logs a warning when no configured role grants admin, since system setup, MES API key management, and bulk export would then be unreachable.

Action-level policies (ADR 0024)

The permission tiers are deliberately coarse: six values a quality unit can review and sign. When a deployment needs finer grain ("operators may acknowledge alarms but not shelve them"), a role in the roles file may take the object form and refine its tiers with action-level allow and deny lists over the action catalog:

The policy read back from the gateway that enforces it: dcs auth policy rendering the shipped tiers plus this plant's deny refinements, and a signed-in non-admin account resolving exactly the actions it is entitled to with dcs auth entitlements.

gateway:
  auth:
    roles:
      dcs-admin: [read, operate, operate-lead, engineer, supervise, admin, interlock:bypass]
      # The object form: tiers plus action-level refinements.
      dcs-operator:
        permissions: [read, operate]
        allow: [prompt:respond]   # granted beyond the tiers
        deny: [alarm:shelve]      # stripped from the tiers

A role's effective action set is (actions pinned to its tiers ∪ allow) − deny. A user holding several roles gets the union of the roles' effective sets. A deny on one role never strips an action another of the user's roles grants, so each role document stays independently reviewable. Keep that in mind for users in multiple IdP groups: to truly fence an action off from a person, no role they hold may grant it.

Allow/deny entries reference exact catalog names. Wildcards are rejected, and an unknown name fails startup exactly like an unknown permission. The gateway also warns on suspicious-but-valid shapes: allow∩deny overlaps (deny wins), allows already covered by the role's tiers, and denies of actions the role never granted.

Guidance for the validation story:

• Plain tiers stay the recommended default. A policy is a small, reviewed delta on the shipped tiers. If a role's lists grow past a handful of entries, define a different tier composition instead. A 150-line allow list is not auditable.
• Policies are change-controlled quality-system items, exactly like the roles file they live in: the reviewed document equals the enforced set, which is the point of exact names.
• Product releases can add new actions. A new action lands pinned to its tier, so only that tier's members gain it. But a deny list written against a family ("no recipe approvals") does not automatically cover a newly added sibling action. Review the release notes' new-action list against your deny lists on every upgrade.
• Read the enforced policy from the running system. The values file is only the input. dcs auth policy (or GET /api/v1/auth/policy, supervise tier) renders each role's configured tiers, refinements, and resolved effective action set, and dcs auth entitlements shows the calling identity's own set. Authorization denials are logged with the deciding layer (tier:<permission>, allow, deny, mes-fence, no-grant). A policy-stripped action is therefore distinguishable from one never granted, and both from one the MES fence confines.
• Both surfaces resolve the MES fence on top of the tiers. An integration identity's effective set lists only the actions its /api/v1/mes/ confinement can reach, so the audit view never claims a plant-write or command capability the running system refuses. A policy allow entry cannot buy an integration identity past the fence.

Two group conventions stay product-defined and are not configurable roles: the dcs-site-* prefix (a group like dcs-site-plant-a assigns the user to site plant-a, and users with the admin permission or no site group are unrestricted) and dcs-mes-integration (the MES integration identity shape, whose read+operate grant and MES fence are fixed by the product).

There is deliberately no in-product role administration surface. No UI, API, or CRD mutates role definitions. Changes flow through the deployment's own GitOps/change-management process (values file → ConfigMap → rollout). For GxP deployments, treat the roles file as a change-controlled configuration item in the site quality system: a change to who may approve recipes is a change to your electronic-records controls (21 CFR Part 11) and should ride the same change-control process as any other.

Electronic Signatures

Electronic signatures implement 21 CFR Part 11 requirements for authenticity and integrity verification.

Algorithm

• HMAC-SHA256 over a canonical JSON payload
• Digest format: lowercase hexadecimal (64 characters)

Signature Payload

The signature binds four elements into a canonical JSON document:

{
  "content": <signed data>,
  "signerID": "user-subject-id",
  "timestamp": "2026-02-25T14:30:45Z",
  "meaning": "approved"
}

21 CFR Part 11 Compliance

Requirement	Implementation
11.70(a): Signer identification	signerID in signature payload
11.70(b)(1): Meaning of signature	meaning parameter (e.g., "approved", "created")
11.70(b)(2): Timestamp	RFC3339 timestamp in payload
Integrity	HMAC prevents modification without key
Non-repudiation	Constant-time verification prevents timing attacks

Usage

// Sign an action
digest, err := esig.Sign(key, contentJSON, user.Subject, time.Now(), "approved")

// Verify a signature
valid := esig.Verify(key, contentJSON, user.Subject, timestamp, "approved", storedDigest)

Archive integrity verification

The audit-archiver uses the same key store to sign one manifest per archival batch (audit_archive_manifest table). Each archived record carries a manifest_id link to its manifest. Operators re-verify archives with:

# Verify all archived batches in the requested window.
dcs audit verify --archived [--since RFC3339] [--until RFC3339]

Non-zero exit on any failure. The specific reason per manifest (digest_mismatch, signature_invalid, unknown_key, count_mismatch, missing_records) distinguishes retention trims, key-store drift, and content tampering. See pkg/audit/archive for the primitive and docs/backup-recovery.md for operational guidance.

The gateway also runs the same verify pipeline on a schedule (gateway.archiveIntegrity.interval, default 6h, floor 15m) and emits one AuditRecord per run with Target.Kind=ArchiveIntegrityCheck. Latest and historical outcomes are served at /api/v1/audit/archive-integrity/latest and /api/v1/audit/archive-integrity/history, and surfaced as a read-only panel at System → Archive Integrity. SIEMs should alert on any scheduler AuditRecord whose result=Failure. Each failure is a compliance deviation per 21 CFR Part 11 §11.10(c).

The scheduler's first run fires one interval after the gateway boots, and a restart clears the in-memory state. A gateway that has just come up therefore has no verdict for at least 15 minutes. When you need the answer now (after restoring an archive, or before signing off a recovery), trigger a run:

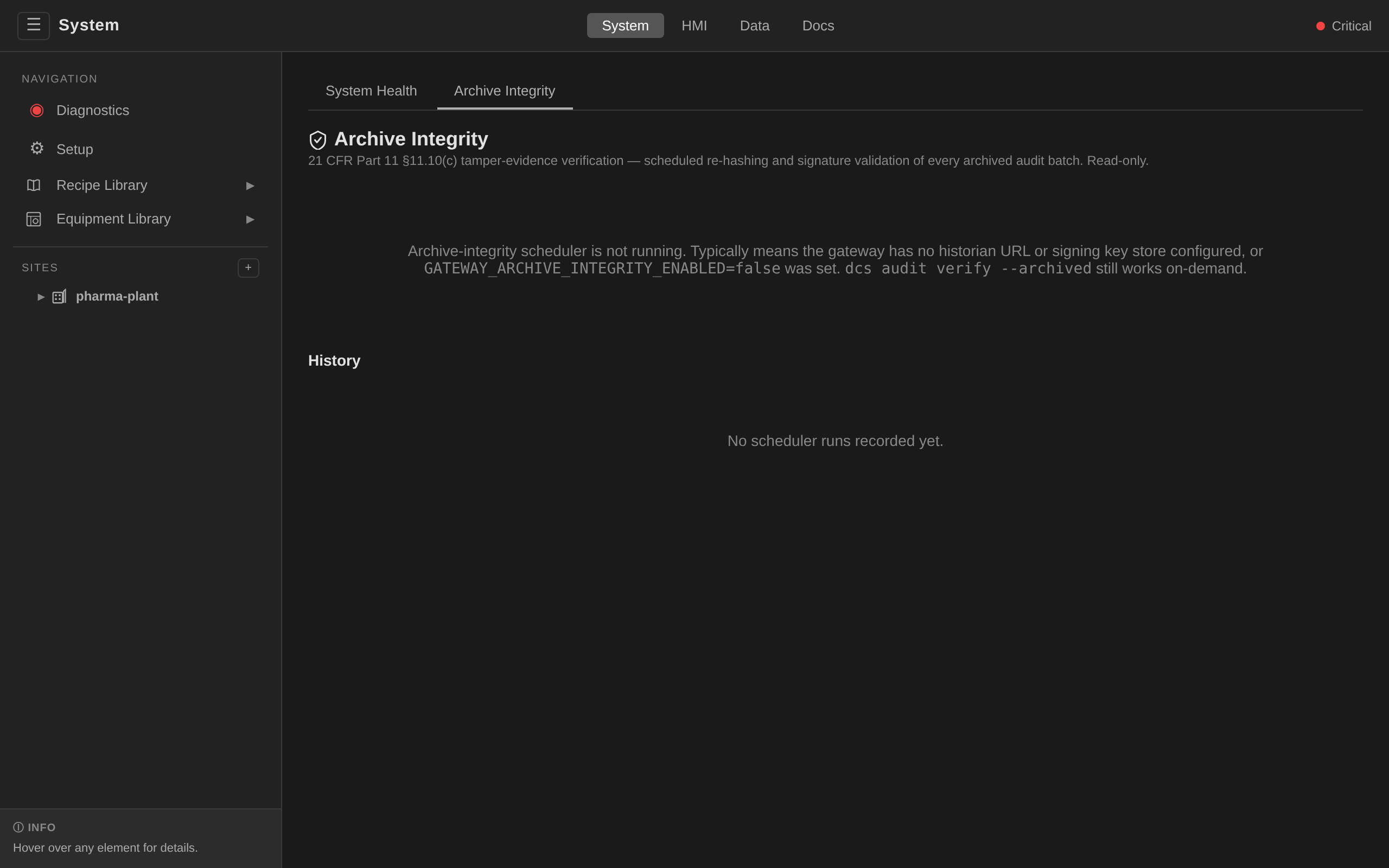

dcs audit archive-integrity run       # runs now, prints the verdict
dcs audit archive-integrity status    # the last run, without starting one

The run is synchronous and exits non-zero when any manifest fails. It writes the same AuditRecord a scheduled run writes, so an on-demand check is as auditable as a scheduled one. An already-running sweep is refused outright, with no duplicate started. The archive-integrity:run action is admin by default (ADR 0034). Grant it to another role through that role's allow list (ADR 0024).

Verification proves the archive has not changed. It does not, on its own, prove that a copy survives someone who wants it gone. That is what the immutable mirror is for, and the two are meant to be read together: the manifest IDs the verification names are the object names in the bucket.

The archive's last copy in an ordinary S3 bucket: each bundle keyed by the manifest ID dcs audit verify --archived names, stamped with a Compliance-mode retention date, and refusing a delete issued by the store's own root identity.

Audit Event Categories (IEC 62443 SR 2.8)

Every AuditRecord carries the SR/CR 2.8 record fields (timestamp, source actor, category, type, event ID via record name + correlation ID, event result). The category label (dcs.io/audit-category) maps to the standard's category list (#974):

SR/CR 2.8 category	Where it appears
Access control	Login success/failure/lockout and administrator unlocks (access-control); session logout/termination records; refused mutating actions (authorization-denied) and MES zone crossings (zone-violation) — see Authorization Denials
Request errors	Records with result: Failure or Rejected (validation rejections, webhook denials)
Control system events	State transitions, commands, holds, interlock bypasses (edge-hold-lifecycle, interlock-bypass, ad-hoc execution categories)
Backup and restore events	Bulk backup exports (backup-restore); restores appear as the per-resource apply records
Configuration changes	Create/Update/Delete/DriftCorrected records; change control (changerequest, flux-reconcile)
Audit log events	Archive-integrity verification runs (audit-log), audit-record archival
Operating system events	Platform scope — Kubernetes audit logging + node logs shipped to the SIEM (delegation D12)

Authorization Denials

Every authorized API route admits through one gate (the action check of ADR 0024), and that gate is what refuses a caller with a 403. Which refusals leave a durable record is a deliberate, bounded choice (#1296), and a SIEM rule written against this trail should be written against exactly what follows:

An action name is <domain>:<verb>, and the verb decides. An action is read-shaped when any hyphen-separated segment of its verb is read, list, browse or poll. So site:read, controlmodule:read-tag and site:outage-read are all read-shaped, while controlmodule:write-tag and backup:export-audit are not.

Refusal	Recorded?	Category
A mutating action — no segment of its verb is read-shaped (create, update, delete, write, command, execute, withdraw, record, verify, validate, write-tag, export-audit, delete-work-order, …)	Yes — Rejected AuditRecord	authorization-denied
A read-shaped action — any verb segment is read / list / browse / poll (read, list, browse, poll, read-tag, outage-read)	No — gateway log only	—
An MES integration identity outside /api/v1/mes/, whatever the verb	Yes — Rejected AuditRecord	zone-violation

Read-shaped denials are log-only for volume: 130 of the 286 registered routes are reads, several of them polled by the UI on a timer, so recording their denials would mint a record per tick, per user, for as long as a role stayed misconfigured.

The rule reads verb segments, and controlmodule:read-tag is why. It is a GET at the read tier that the HMI dashboard fetches once per equipment card on a three-second poll (_updateEquipCard in static/js/hmi/hmi-display.js), the highest-volume read route in the product. A rule that enumerated whole verbs classified it as a mutation and would have recorded every tick of it. Segment matching does not, and it will not miss the next action spelled <x>-read or read-<x> either. Segment membership is exact, so a verb like readonly or listener is not read-shaped.

The split still fails closed: a verb with no read-shaped segment is recorded, so a new action lands on the safe side by default. It is defined in exactly one place, pkg/auth.Action.IsReadShaped.

The MES fence records regardless of verb because it is a different event: an integration credential reaching a plant endpoint is an IEC 62443 zone crossing, either a misconfigured integrator or a stolen key in use, and its volume is self-limiting. Query it apart from an ordinary tier miss with the category label:

kubectl get auditrecords -A -l dcs.io/audit-category=zone-violation

Each record carries the action name in spec.target.name and, in spec.message, the deciding policy layer: deny when a role's deny list stripped an action that was otherwise granted, no-grant when nothing granted it, mes-fence for a zone crossing. That distinction is the difference between a policy working as written and a role that was never provisioned, so it is worth alerting on differently.

The record is always written before the 403 reaches the client, on both branches and on the WebSocket transport (#1251). A caller told "forbidden" can never read the trail and fail to find its own refusal.

Audit Processing Failures

Behavior when an AuditRecord cannot be persisted (IEC 62443 SR 2.10, #974), per action class:

• Essential/control actions (fail-open): control loops, operator commands, reconcilers, and the gateway API never block on audit persistence. A failed create is retried with bounded backoff (~350 ms worst case), then logged and counted (dcs_audit_record_failures_total), and the action proceeds. This is the Clause 4.2-compliant direction: audit must not take down essential functions.
• 21 CFR Part 11 change-control transitions (fail-closed): the approval/apply path uses RecordResult. When the AuditRecord (the compliance artifact itself) cannot be persisted, the transition is withheld (#642).
• Alerting: the chart ships the DCSAuditProcessingFailure PrometheusRule (severity critical, fires on any failure increase in 10 min) so personnel are notified while essential services continue.

Audit Storage Capacity (IEC 62443 SR 2.9)

Audit storage is bounded by design: the etcd tier holds a rolling active window (default 90 days) and the archiver moves records to PostgreSQL/TimescaleDB (default 3-year retention), so unbounded growth cannot exhaust the store. As capacity is approached or the store becomes unavailable, components keep operating (the fail-open policy above) and the failure alert fires. Creation rate is observable via dcs_audit_records_created_total. Capacity planning guidance lives in capacity-planning.md.

SIEM Integration

Security-relevant events from Cloud-Native DCS can be streamed into an external SIEM (Splunk, Microsoft Sentinel, Elastic Security, Chronicle, QRadar, Sumo Logic) for centralized monitoring, correlation, and long-term retention beyond the gateway's own audit archive.

What to ingest

Three streams together cover the full security-relevant surface:

Source	Transport	Format	Contents
Gateway access log	stdout → container runtime → log collector (Fluent Bit, Vector, Promtail, Loki)	Console by default, JSON on request (see below)	Every /api/ request with method, path, status, duration, authenticated subject, client IP, user-agent and request ID
AuditRecord CRs	Gateway API poll (GET /api/v1/sites/{site}/audit) or Kubernetes audit webhook	JSON	Every state-changing action: recipe approve/reject, batch command, equipment allocation, control-program deploy, prompt acknowledge, qualification run
Kubernetes control-plane audit	kube-apiserver audit log	JSON	CR mutations, RBAC decisions, ServiceAccount token use, admission-webhook results

The gateway access log and the AuditRecord stream are the two that matter most for a SIEM correlation graph. They together capture "who asked for what, did it succeed, and what changed in the control plane."

Log format

Every Cloud-Native DCS component logs in the same format, and that format is the console encoder (ADR 0063). The default serves the product's own log readers, which are the Diagnose panel's Logs tab and dcs health --logs. Both render a pod's stdout as text and neither parses it.

A deployment shipping logs to a collector sets one value for the whole release, and every component moves together:

logging:
  encoder: json

Two more keys sit beside it. logging.level accepts debug, info, error or panic and defaults to info. Setting it to debug turns on every V(1) line the product carries, and that includes one entry per page and per static asset the gateway serves. Treat it as a triage setting.

logging.stacktraceLevel accepts info, error or panic. The default emits a stack trace only when the process is going down, because an error already carries its cause in a structured field.

The access log itself records requests to /api/. Page and static-asset requests are logged at V(1), so a collector that wants them needs logging.level: debug.

Access-log fields

Every entry carries the same eight fields, under the message request.

Field	Value
method	HTTP method as received
path	Request path. The query string is deliberately absent — the WebSocket and SSE routes authenticate from a ?token= parameter, and a session token does not belong in a stream a SIEM retains for years
status	Response status code
duration	Wall-clock time the request took. On the WebSocket, SSE and terminal routes this is the lifetime of the connection, and the entry is written when it closes
subject	The authenticated identity's subject: the OIDC or LDAP sub, or apikey:<name> for an API key. - when the request carried no identity the gateway could establish, which is what a refused request and an auth-exempt route both look like
clientIP	The caller's address, resolved by the same rule the audit trail uses: CF-Connecting-IP first (the Cloudflare tunnel overwrites it, so it cannot be spoofed), then the leftmost X-Forwarded-For entry, then X-Real-IP, then the socket peer
userAgent	The User-Agent header, capped at 256 characters with … marking a cut. - when the header is absent
requestID	The OpenTelemetry trace ID of the request when tracing is configured (--otlp-endpoint), which joins the entry to its span. A freshly minted 128-bit value otherwise. Both are 32 hex characters

An entry is written for a request the gateway refuses, which is the point of recording the identity fields at all: the 401 from a bad token, the 403 from the authorization model, and the 429 from the rate limiter all carry the client IP and the user-agent, and a 403 carries the subject it refused.

Three of these fields are personal data when the caller is a person. Those are the subject, the client IP and the user-agent. They are the fields a SIEM correlation rule needs, and they are also the fields a retention policy has to account for. None of them can carry a credential: a token arrives in a header or a query parameter and neither is recorded. See § Retention alignment.

Event catalogue

The most useful events to alert on:

Event	Signal
auth.login.failed (repeated)	Credential stuffing or brute-force
auth.group.denied	Privilege-escalation attempt
recipe.approve / recipe.reject	Change-control activity outside normal hours
batch.command.Abort	Emergency stops — correlate with alarm history
controlprogram.hotswap.override	Hot-swap bypass annotation used (dcs.io/allow-hot-swap=true) — always review
prompt.acknowledge	Operator e-signature during a batch — confirm the signer vs schedule
qualification.run	IQ/OQ/PQ execution — confirm expected cadence and success
cert.expiry.imminent	Within 4 h of any cert-manager-issued Certificate expiring
mqtt.auth.denied	Unauthorized MQTT client attempt

Minimal collector config

A Fluent Bit sidecar pattern for shipping gateway stdout to Loki or an S3-compatible bucket, plus a CronJob that polls the audit API and emits one JSON event per new record, is the recommended starting point. The exact YAML depends on your collector and SIEM. The key requirement is that the collector is read-only against the gateway API.

Give the collector a dedicated OIDC identity whose only DCS group is dcs-viewer. That role holds read and nothing else. The audit API is therefore reachable (GET /api/v1/sites/{site}/audit carries the action audit:read at the read tier), and every state-changing route answers 403. The refusal comes from the authorization model, so it holds for any route the collector reaches by any means. Confining the credential to GET at an egress proxy is still worth doing as defence in depth, and it is no longer what the read-only property rests on.

A deployment that supplies its own roles file needs to re-declare this role, because a non-empty gateway.auth.roles replaces the shipped table outright:

gateway:
  auth:
    roles:
      # …the roles this plant defines…
      siem-collector: [read]

Two properties of the grant are worth checking against your own threat model before you use it. A viewer reads everything readable: batch records, recipes, trends, alarm history, and the audit trail itself, across every site the identity's dcs-site-* groups admit it to. Least privilege here is about what the credential can do, and site scoping is what bounds what it can see. An identity that only observes writes no AuditRecord, because it changes nothing. The access log is therefore the only trail it leaves, and that log names the subject and the client IP on every entry. That is what lets you alert on a collector credential used from anywhere except the collector: the subject field is the collector's own, and the clientIP and userAgent fields are what a replay from elsewhere changes. Write the rule against the access log. A read makes no record in the audit trail by design, so a rule written there sees nothing.

Retention alignment

Pharma customers typically need 7–15 years of retention on security events to align with batch-record retention (21 CFR Part 211). The gateway's archive tier defaults to 3 years. SIEM or cold-storage offloading covers the remainder. Ensure SIEM retention matches or exceeds the longest regulatory retention that applies to records the SIEM receives.

Identity Providers

Cloud-Native DCS authenticates users via any OIDC-compliant identity provider, or against an LDAP directory directly. Getting a specific provider to emit a group claim, and getting the values in that claim to match the role names this deployment defines, is covered on its own page: Identity Providers. That page is the one home for the per-provider mapping (Keycloak, Microsoft Entra ID, Okta, PingOne, PingFederate, Google Workspace and Auth0), for the diagnosis of a user who authenticates and then holds no permissions, and for the effect provider token lifetime has on electronic signatures.

Enforce MFA at the identity provider. 21 CFR Part 11 §11.100(c) is satisfied through the IdP's MFA policy, and the DCS gateway plays no part in it.

TLS

MQTT TLS and Authentication

The MQTT broker runs a production security profile by default (mqtt.securityProfile: production), which enables:

• TLS encryption on port 8883 (MQTTS): plaintext port 1883 is disabled
• Per-role authentication: anonymous connections are rejected
• Topic-level ACLs: each client role has scoped access
• Connection and auth logging: for audit trail (IEC 62443 FR 6)

Certificates are provisioned automatically via cert-manager, reusing the mTLS CA issuer when mtls.enabled is true.

Client roles and topic access:

Role	Username	Topic Access
Gateway	dcs-gateway	readwrite dcs/# (full access)
Operators	dcs-operator	readwrite dcs/# (full access)
Runtimes	dcs-runtime	readwrite dcs/+/runtime/#, write dcs/+/unit/+/telemetry, read dcs/+/equipment/+/+/command
Historian	dcs-historian	read dcs/# (read-only)
OMF egress	dcs-omf-egress	read dcs/# (read-only, a separate identity from the historian so revoking one does not take the other's feed)

Every role has a second account name available, its base name with a -b suffix and identical rules. Those are the two credential slots a password rotation moves between, and the second one exists only while a rotation is running. See ADR 0061 and the rotation runbook.

Development mode: Set mqtt.securityProfile: dev to disable TLS and authentication for local development.

See MQTT Telemetry for topic structure and client configuration details.

Gateway TLS

The gateway can be placed behind a TLS-terminating ingress or load balancer. In production, all traffic should be encrypted.

IEC 62443 Alignment

Cloud-Native DCS maps to the IEC 62443 zone/conduit model:

Zone	Components	Security Level
Control network	Operators (k8s control plane)	SL 2+
Field network	Runtimes, I/O modules	SL 1-2
Enterprise network	Gateway, dashboards	SL 2+
DMZ	MQTT broker (if federated)	SL 2

Conduits (communication paths):

From	To	Protocol	Protection
Operator → Runtime	HTTP	mTLS (cert-manager)
Runtime → I/O Module	EtherNet/IP, Modbus TCP, OPC UA	Protocol-native
Controller → MQTT Broker	MQTT v5	TLS + username/password
Gateway → API	HTTPS	TLS + OIDC

Compliance: See IEC 62443 traceability and 21 CFR Part 11 traceability for requirements mapping.

Related Documentation

• Security Hardening Guide -- Step-by-step production hardening
• Threat Model -- STRIDE analysis and risk assessment
• Architecture -- System overview
• MQTT Telemetry -- MQTT TLS configuration
• Alarm Management -- Alarm acknowledgment flow
• Monitoring and Metrics -- Audit metrics
