Recipes

A recipe is the executable description of a product: what equipment to use, what parameters to dose, and the procedural sequence that drives the batch from start to finish. This guide walks through authoring, composing, and approving recipes against the ISA-88 procedural hierarchy.

Most steps are presented as tabs so you can pick the interface that fits how you work:

• UI — /system → Recipes. List, detail, visual SFC procedure editor, lifecycle buttons (Approve / Reject / Release / Activate / Withdraw) with reason dialogs.
• CLI — dcs subcommands (dcs get, dcs recipe approve, …).
• YAML — author locally, apply with dcs apply -f.

Which tabs appear on a given step depends on the action. Create/edit steps show UI + YAML, and imperative commands like Approve show UI + CLI. The lifecycle transitions also keep an API tab because the signed approval endpoints carry semantics (reason payloads, electronic signatures) integrators call directly. See STYLE-GUIDE § Tabbed Alternatives for the full rules. When a UI path is not yet implemented, the UI tab carries a placeholder admonition linking to the tracking issue. Silent omission is the thing the placeholder rule exists to prevent.

Integrators: see the API Reference for the REST equivalents of the actions on this page.

The ISA-88 procedural hierarchy

A recipe doesn't reach down directly to phases. It composes intermediate templates that group phases into reusable operations and unit procedures. The cascade, low to high:

Level	What it is	CRD
Phase	One bounded equipment activity (charge, heat, drain). The leaf of the tree. Authored in Phases.	PhaseTemplate
Operation	An ordered sequence of phases that completes one logical step (e.g., a CIP rinse: fill → agitate → drain).	OperationTemplate
Unit Procedure	A sequence of operations that exercises one unit end-to-end (e.g., a full CIP cycle on a vessel).	UnitProcedureTemplate
Procedure	The recipe-level chart that orchestrates unit procedures across the cell. Authored as part of the master recipe itself.	MasterRecipe.spec.procedure

Operations and unit procedures are reusable templates: author them once and reference from any number of recipes. The recipe procedure is unique to each recipe, and you author it inline alongside the recipe's header, formula, and equipment requirements.

flowchart TD
    P1[PhaseTemplate<br/>e.g. cip-fill] --> OT[OperationTemplate<br/>e.g. cip-rinse-op]
    P2[PhaseTemplate<br/>e.g. cip-agitate] --> OT
    P3[PhaseTemplate<br/>e.g. cip-drain] --> OT
    OT --> UPT[UnitProcedureTemplate<br/>e.g. cip-vessel-cleaning]
    OT2[OperationTemplate<br/>e.g. cip-hot-wash-op] --> UPT
    UPT --> MR[MasterRecipe.spec.procedure<br/>Recipe-level SFC]

Recipe hierarchy

flowchart TD
    MR[MasterRecipe<br/>namespaced<br/>bound to a ProcessCell + Units] --> CR[ControlRecipe<br/>namespaced<br/>immutable instance for one Batch]

You create the MasterRecipe. The batch controller automatically creates the ControlRecipe when a Batch is started.

ISA-88 Clause 6 defines five recipe information categories. All are supported on every recipe level:

• Header — batch sizing (nominal, min, max) via spec.header
• Formula — parameter sets for different batch sizes via spec.formulas. Each formula contains enriched FormulaParameter entries (ISA-88 Part 2 Table 10/41) with engineering units, value limits, tolerance bands, and scaling flags alongside the parameter value
• Equipment Requirements — required capabilities via spec.equipmentRequirements
• Procedure — SFC-based procedural flow via spec.procedure
• Other Information — safety notes, regulatory notes, operator instructions, and document references via spec.otherInformation

The batch controller copies all categories from MasterRecipe to ControlRecipe at instantiation time.

Authoring operation and unit-procedure templates

Operation and unit-procedure templates are reusable, site-scoped sequences. Both are SFC charts whose steps reference the level below. Operation steps reference PhaseTemplates, and unit-procedure steps reference OperationTemplates. There is one chart per template (no ISA-88 state tabs, which only exist on phase templates).

UICLIYAML

/system → Equipment Library → pick a site → choose Operations or Unit Procedures from the sidebar → + New Operation Template / + New Unit Procedure Template. Fill in name and equipment-role declarations on the metadata form, then Save. On the detail page, Edit SFC opens the visual editor with a CHILD TEMPLATES panel listing every template the current chart can reference.

The operation level runs below: a phase template authored from scratch, then wired into a new operation template through the per-step template picker. The unit-procedure editor works the same way one level up, and the recipe-level picker appears in the Create a MasterRecipe clip.

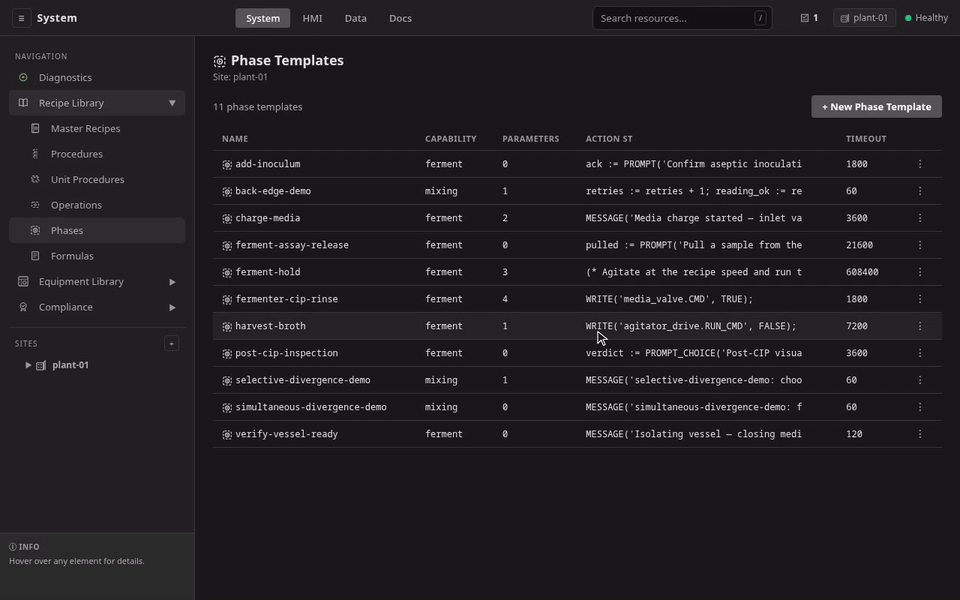

A phase authored in the browser, then wired into a new operation template through the per-step template picker. The same editor drives every level of the hierarchy.

dcs apply -f my-operation.yaml
dcs apply -f my-unit-procedure.yaml
dcs get operationtemplates -s $SITE
dcs get unitproceduretemplates -s $SITE

apiVersion: procedural.dcs.io/v1alpha1
kind: OperationTemplate
metadata:
  name: cip-rinse-op
  namespace: site-demo
spec:
  chart:
    initialStep: fill
    steps:
      - name: fill
        templateRef: cip-fill
        parameters:
          - name: target_level
            value: "0.85"
      - name: agitate
        templateRef: cip-agitate
        parameters:
          - name: duration
            value: "T#5m"
      - name: drain
        templateRef: cip-drain
    transitions:
      - fromStep: fill
        toStep: agitate
      - fromStep: agitate
        toStep: drain

The chart-authoring mechanics (adding steps, drawing transitions, editing conditions) are the same as phase chart authoring. See Building the chart in Phases. One difference is what the right-hand CHILD TEMPLATES panel exposes: phase templates at the operation level, operation templates at the unit-procedure level, unit-procedure templates at the recipe level.

The other is divergences. A recipe procedure chart does not take one, and the editor does not offer the parallel-branch drag there. Starting a batch creates one child procedural element per step of the recipe's chart. It creates them in the order the steps are declared. Branches drawn on such a chart would therefore run one after another. See Procedural SFC dialect → Divergences.

For the shipped riverbend operation and unit-procedure templates, see the Operations and Unit Procedures library.

1. Create a MasterRecipe

A MasterRecipe defines the product, parameters, equipment requirements, procedure, and (via targetProcessCell + targetUnits) the concrete Unit bindings used when a Batch runs against it. It lives in the site's namespace (site-{siteName}).

UICLIYAML

/system → Recipes → site picker set to the target site → + New Master Recipe. The creation form carries the recipe's identity: Name, Product Name, Product ID, Version (pre-filled 1.0.0, while later versions come from New Version on the detail page), Author, Category, Process Cell, Description, and the Other Information block (safety, regulatory, and operator notes plus document references). Create lands the recipe in Draft.

Parameters, the batch-size header, and the capability→unit map (targetUnits) are spec fields the form does not cover: author them in the YAML tab and apply with dcs apply -f. Formulas have their own editor under the Formulas tab. The detail page renders targetUnits read-only as the Target Units table.

To author the procedure SFC, open the MasterRecipe detail → Edit → Edit Procedure (Visual SFC Editor). Each recipe procedure step binds a unit-procedure template and declares a Target Capability. At batch time that capability key resolves through targetUnits to a concrete Unit. See Building the chart in Phases for the canvas, child-template picker, and parameter bindings.

The whole path runs below: the creation form lands a Draft, a procedure step binds a template that nobody has authored yet, the controller surfaces the broken reference in the detail's red Validation Errors section, the reference is fixed from the template picker, and the seeded production recipe shows the Target Units table that closes the capability→unit loop.

Create → Draft → a broken template reference caught at authoring time → fixed from the picker → the Target Units table that resolves the step's capability to a Unit.

Save the YAML in the YAML tab as masterrecipe.yaml, then:

dcs apply -f masterrecipe.yaml
dcs get masterrecipes -s houston-plant

apiVersion: recipe.dcs.io/v1alpha1
kind: MasterRecipe
metadata:
  name: chemical-mix-cell1
  namespace: site-houston-plant
spec:
  productName: "Chemical Compound A"
  productID: "CCA-001"
  version: "1.0.0"
  author: "Process Engineering"
  category: "chemical-mixing"
  description: "Master recipe for chemical mixing on mixing-cell-1"
  targetProcessCell: mixing-cell-1

  header:
    batchSize: "1000.0"
    minBatchSize: "500.0"
    maxBatchSize: "5000.0"
    batchSizeUnit: "kg"

  parameters:
    - name: targetTemp
      type: REAL
      defaultValue: "80"
      minValue: "20"
      maxValue: "200"
      engineeringUnit: "degC"
      description: "Target reaction temperature"
    - name: mixTime
      type: INT
      defaultValue: "3600"
      minValue: "600"
      maxValue: "7200"
      engineeringUnit: "seconds"
      description: "Mixing duration"

  # Map required capabilities to actual units in the process cell
  targetUnits:
    mixing: reactor-1
    heating: reactor-1

  parameterValues:
    - name: targetTemp
      value: "85"
    - name: mixTime
      value: "3600"

Parameter validation

The controller validates all parameters on creation: - type must be an IEC 61131-3 elementary type: REAL, INT, STRING, BOOL, or TIME - minValue must be less than or equal to maxValue for numeric types - defaultValue must be within the min/max range

Cross-API validation

The MasterRecipe controller also validates that: - Each unit in targetUnits exists as a physical.dcs.io/Unit resource - Each unit has the required capability in its spec.capabilities - Every control-module role declared by the phase templates the procedure reaches is mapped in the target unit's spec.cmRoles, to a ControlModule whose moduleType satisfies the role's declared type. The outcome is surfaced as a BindingsResolved condition. Violations block promotion, and an already-Effective recipe whose bindings break (for example after a unit edit) is auto-reverted to Approved. Inspect the full matrix with dcs recipe check-bindings <name>. The inverted per-unit view is dcs unit check-bindings <unit>.

Check validation errors:

UICLI

/system → Recipes → pick the recipe. The MasterRecipe detail page surfaces validation errors (missing units, missing capabilities, broken template references, type/range violations) as a red Validation Errors section listing every finding. Binding problems additionally surface as the BindingsResolved condition described above.

dcs get masterrecipes -s houston-plant
dcs get masterrecipe chemical-mix-cell1 -s houston-plant

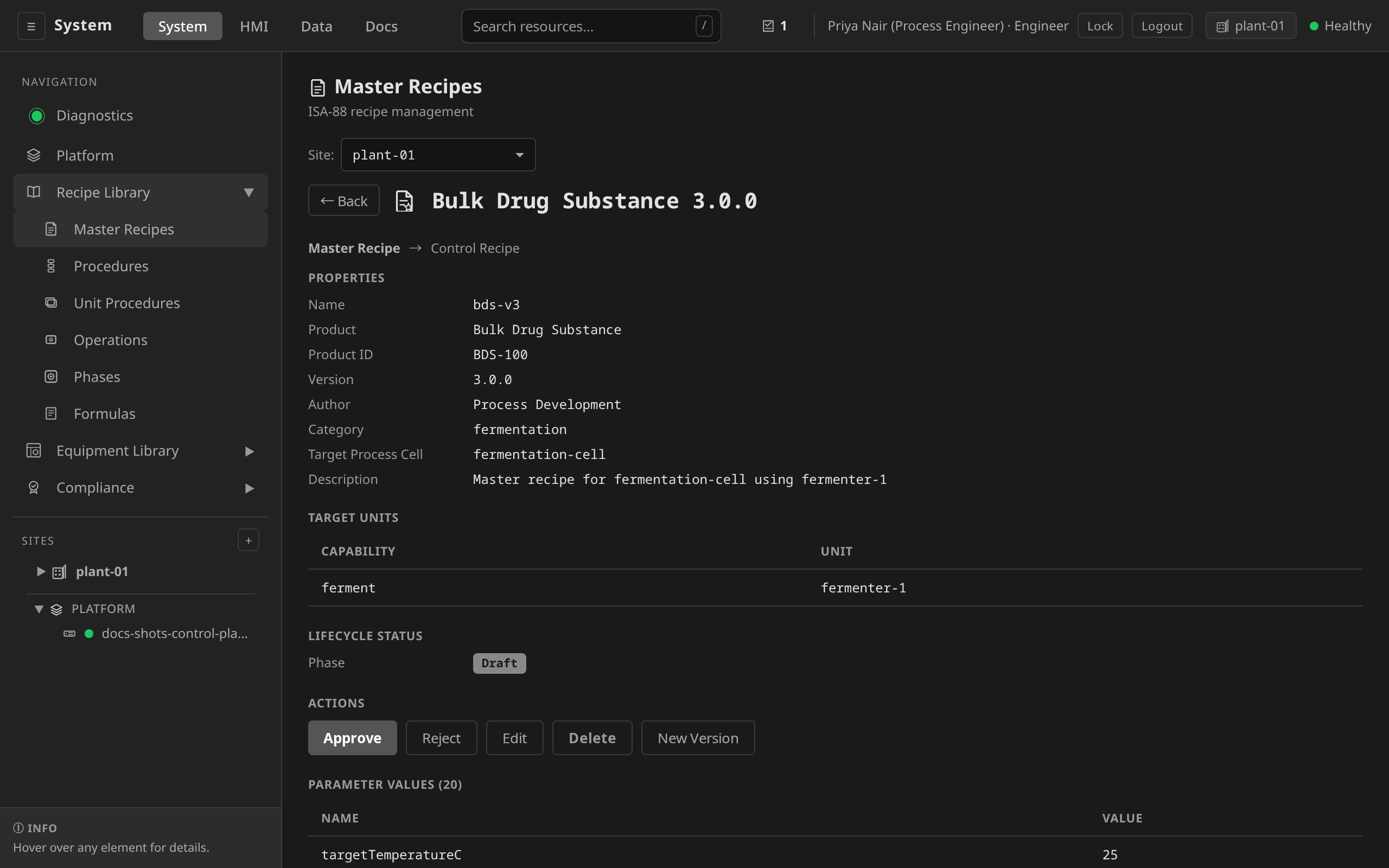

A new MasterRecipe starts in Draft phase and must be approved before batches can run against it (see Recipe Approval Workflow below).

Worked example: CIP master recipe

A complete recipe procedure for a typical pharma CIP sequence. Every step is a phase template reference, so phase logic stays reusable across recipes. Chemical-wash and rinse share their templates with other CIP products, and the two drain steps each bind a single-action phase template that toggles the drain valve.

UIYAML

/system → Recipes → Master Recipes → + New Master Recipe creates the recipe shell: name, product identity, target process cell, description. The override Parameters (duration, temperature) and the flat phase-level chart of this example are YAML territory. Apply the manifest from the YAML tab with dcs apply -f and the recipe detail renders the seven-step sequence in its procedure preview.

In the visual editor a recipe procedure step binds a unit-procedure template (the recipe-level CHILD TEMPLATES panel lists them). A chart that references phase templates directly, as this CIP sequence does, stays a YAML-side pattern. The visual editor still renders it for review.

# Single-action phase templates the recipe will reference. In a
# real plant these live in the phase-template library next to
# rinse / chemical-wash.
apiVersion: procedural.dcs.io/v1alpha1
kind: PhaseTemplate
metadata:
  name: drain-open
  namespace: site-demo
spec:
  description: "Open the drain valve"
  capability: draining
  actionChart:
    initialStep: open
    steps:
      - name: open
        actionST: |
          valve_drain := TRUE;
    transitions: []
---
apiVersion: procedural.dcs.io/v1alpha1
kind: PhaseTemplate
metadata:
  name: drain-close
  namespace: site-demo
spec:
  description: "Close the drain valve"
  capability: draining
  actionChart:
    initialStep: close
    steps:
      - name: close
        actionST: |
          valve_drain := FALSE;
    transitions: []
---
apiVersion: recipe.dcs.io/v1alpha1
kind: MasterRecipe
metadata:
  name: cip-standard
  namespace: site-demo
spec:
  description: "Standard CIP sequence for reactor vessels"
  version: "1.0"
  targetProcessCell: cip-cell
  parameters:
    - name: duration
      type: TIME
      description: "Override rinse duration"
    - name: temperature
      type: REAL
      description: "Override wash temperature"
  procedure:
    # Bounds the batch's Procedure as a whole. Copied onto
    # Procedure.spec.timeoutSeconds at instantiation; wall-clock from the
    # procedure starting, holds included, and a Hold (not an abort) when it
    # elapses. Omit for no limit — there is no default above the phase.
    # See phases.md § Budgets above the phase.
    timeoutSeconds: 7200
    chart:
      initialStep: pre-rinse
      steps:
        - name: pre-rinse
          templateRef: rinse
          templateKind: PhaseTemplate
          parameters:
            - name: duration
              value: "T#5m"
            - name: water_source
              value: "'WFI'"

        - name: caustic-wash
          templateRef: chemical-wash
          templateKind: PhaseTemplate
          parameters:
            - name: chemical
              value: "'NaOH'"
            - name: concentration
              value: "0.5"
            - name: temperature
              value: "75.0"
            - name: duration
              value: "T#20m"

        - name: intermediate-rinse
          templateRef: rinse
          templateKind: PhaseTemplate
          parameters:
            - name: duration
              value: "T#5m"
            - name: water_source
              value: "'WFI'"

        - name: acid-wash
          templateRef: chemical-wash
          templateKind: PhaseTemplate
          parameters:
            - name: chemical
              value: "'H3PO4'"
            - name: concentration
              value: "0.3"
            - name: temperature
              value: "65.0"
            - name: duration
              value: "T#15m"

        - name: final-rinse
          templateRef: rinse
          templateKind: PhaseTemplate
          parameters:
            - name: duration
              value: "T#10m"
            - name: water_source
              value: "'WFI'"

        - name: drain-open
          templateRef: drain-open
          templateKind: PhaseTemplate

        - name: drain-close
          templateRef: drain-close
          templateKind: PhaseTemplate

      transitions:
        - fromStep: pre-rinse
          toStep: caustic-wash
        - fromStep: caustic-wash
          toStep: intermediate-rinse
        - fromStep: intermediate-rinse
          toStep: acid-wash
        - fromStep: acid-wash
          toStep: final-rinse
        - fromStep: final-rinse
          toStep: drain-open
        - fromStep: drain-open
          toStep: drain-close
          conditionST: "drain-open.T >= T#3m"

Batch-size scaling worked example

ISA-88 Clause 6.3 lets a single recipe serve a range of batch sizes. A Master Recipe declares its spec.header bounds and multiple spec.formulas, each keyed to a batch size and supplying parameter values. The batch controller selects the formula that matches the requested batch size and cascades its values into the ControlRecipe at instantiation.

Here is a simplified reactor heating recipe with three formulas, one for each of the min, nominal, and max batch sizes.

UIYAML

/system → Recipes → Master Recipes → + New Master Recipe. In the Header section, set batchSize (the nominal size) / minBatchSize / maxBatchSize and the units. In the Formulas section, click + Add Formula three times (one per batch size) and fill each formula's batchSize and the parameter values (solventCharge, heatSetpoint, holdDuration). The batch controller picks the closest formula at batch creation and cascades its values into the ControlRecipe.

apiVersion: recipe.dcs.io/v1alpha1
kind: MasterRecipe
metadata:
  name: reactor-heat-m1
  namespace: site-demo
spec:
  targetProcessCell: sim-cell
  header:
    batchSize: "500.0"
    minBatchSize: "250.0"
    maxBatchSize: "750.0"
    batchSizeUnit: "kg"
  formulas:
    - name: "formula-min"
      batchSize: "250.0"
      parameters:
        - name: solventCharge
          value: "125.0"
          engineeringUnit: "L"
        - name: heatSetpoint
          value: "60.0"
          engineeringUnit: "degC"
        - name: holdDuration
          value: "1800"
          engineeringUnit: "s"
    - name: "formula-nominal"
      batchSize: "500.0"
      parameters:
        - name: solventCharge
          value: "250.0"
          engineeringUnit: "L"
        - name: heatSetpoint
          value: "60.0"
          engineeringUnit: "degC"
        - name: holdDuration
          value: "2400"
          engineeringUnit: "s"
    - name: "formula-max"
      batchSize: "750.0"
      parameters:
        - name: solventCharge
          value: "375.0"
          engineeringUnit: "L"
        - name: heatSetpoint
          value: "60.0"
          engineeringUnit: "degC"
        - name: holdDuration
          value: "3000"
          engineeringUnit: "s"
  procedure:
    # ... SFC chart referencing phase templates ...

At batch creation, the operator supplies a batch size, and the batch controller:

1. Validates it falls between minBatchSize and maxBatchSize.
2. Selects the closest-matching formula (or interpolates, depending on the scaling mode configured. The shipped path picks the formula whose batchSize is closest without exceeding the request).
3. Copies the chosen formula's parameters into the new ControlRecipe.
4. Each phase step then receives its parameter values through the normal parameter-binding chain (see Parameter Binding).

Observe what scales and what does not:

Parameter	Scales with batch size?
solventCharge	Yes — linear with batch size (125 → 250 → 375 L)
holdDuration	Partially — longer at bigger charge to maintain mass-specific energy input, but not linearly
heatSetpoint	No — setpoint is a product specification and never scales

This mirrors real pharma practice: quantity parameters scale, time parameters scale slower than quantities (surface area vs volume asymmetry), and quality-defining setpoints are constant. The recipe author's job is to decide which column each parameter belongs in. Rebuilding the recipe for every batch size is exactly what the formulas replace.

The Recipes view in the System endpoint lists all master recipes with their approval status:

2. ControlRecipe (automatic)

You do not create ControlRecipes directly. When a Batch is created, the batch controller:

1. Reads the MasterRecipe
2. Selects a formula (if the MasterRecipe defines formulas):
3. If the Batch specifies formulaRef, uses that named formula
4. Otherwise, auto-selects the formula whose batchSize is closest to the Batch's batchSize
5. Merges parameters in order: MasterRecipe defaults → selected formula → Batch parameterOverrides
6. Creates a ControlRecipe with the unit bindings, resolved parameters, and formulaRef (for audit traceability)
7. Resolves parameter bindings — ${paramName} template variables and explicit parameterBindings on SFC steps are substituted with the actual recipe parameter values

The resolved ControlRecipe captures the final parameter values, the selected formula name, and the parameterBindings metadata, creating a traceable link from recipe formula to phase execution for audit compliance.

ControlRecipes are immutable once their phase reaches Active or Complete. Any attempt to modify the spec is rejected by the controller. This supports audit trail integrity for 21 CFR Part 11 compliance.

Recipe Approval Workflow, End-to-End

Recipes cascade through the lifecycle Draft → Approved → Released → Effective → Withdrawn, with a Rejected state for drafts that fail review. Each transition is gated on role and emits an immutable AuditRecord with an HMAC-SHA256 electronic signature per 21 CFR Part 11 §11.50/§11.70. This section walks a fresh Master Recipe through the whole path.

Starting state: Draft

When an engineer creates a MasterRecipe it lands in the Draft state. Draft recipes are editable and not eligible to run batches.

UIYAML

/system → Recipes → + New Master Recipe. Fill in name, target site and process cell, and the author email. Save to create the recipe in Draft.

Author a MasterRecipe manifest locally (see the worked CIP example above for the full shape), then apply:

dcs --site houston-plant apply -f product-x-heat-m1.yaml

The recipe lands in Draft and can then be opened in /system → Recipes for further editing or moved through the lifecycle below.

Transition 1: Draft → Approved

Approval is a quality gate. Only members of the dcs-supervisor or dcs-admin OIDC group can approve. The approver must supply a reason. The reason becomes part of the audit record and the electronic signature payload.

UICLIAPI

/system → Recipes → open the Draft recipe → under ACTIONS click Approve. A dialog asks for a reason and the Approve button stays disabled until the reason meets the deployment reason policy. Cancel aborts the approval.

ACTIONS panel content tracks the ISA-88 lifecycle phase. Draft shows Approve/Reject/Edit/Delete, Approved shows only Release, Released shows only Make Effective, and Effective shows only Withdraw (New Version is available in every phase). Approve, Reject, Release, and Make Effective use the reason dialog. Withdraw and Delete run the typed-name ceremony, because retiring or removing a recipe is hazard-class.

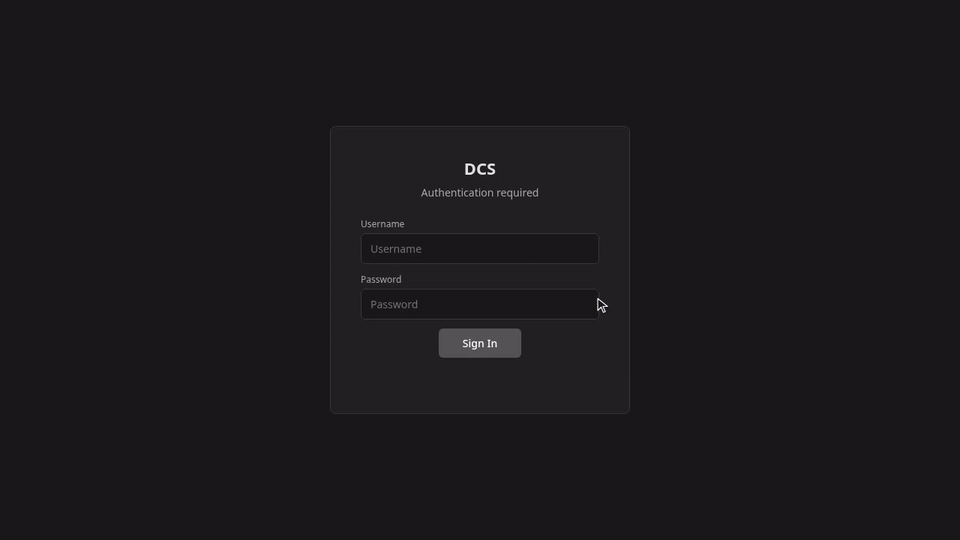

The whole ladder runs below on one throwaway recipe, by a supervisor who signs in for real:

Draft → Approved → Released → Effective → Withdrawn → Deleted: every step reason-gated, the panel tracking each phase, signed by a real directory identity.

dcs recipe approve product-x-heat-m1 \
  --reason "Validated against IQ protocol iq-2026-04-15; reviewed by J. Smith" \
  -s houston-plant

POST /api/v1/sites/{site}/recipes/master/{name}/approve
{"reason": "Validated against IQ protocol iq-2026-04-15"}

Behind the scenes:

1. Gateway verifies OIDC group membership (dcs-supervisor or dcs-admin). HTTP 403 otherwise.
2. Gateway computes an HMAC-SHA256 digest over the canonical JSON of {content: recipe spec, signerID: OIDC sub, timestamp: now, meaning: "approved"} using the dcs-signing-key Secret.
3. An AuditRecord with action=Approve, actor identity, reason, and the ElectronicSignature struct (signerID, signerName, signedAt, meaning, digest) is created.
4. The recipe's status.phase moves to Approved, its status.approvedBy and status.approvedAt fields are populated, and a new RecipeRevision immutable snapshot is written.

Approved recipes are locked against edit. Any change requires a new revision, which re-enters Draft and must go through approval again. This is the §11.10(k) "use of appropriate controls over systems documentation" story for recipe changes.

Transition 2: Approved → Released

Release is a deployment gate. It signals that the recipe is ready for production batches, distinct from "approved by QA in principle." Release requires the same role gate and a reason.

UICLIAPI

Detail page → ACTIONS → Release → enter reason → confirm. The ACTIONS panel and reason modal are the same controls shown in Draft → Approved above. Only the active button changes.

dcs recipe release product-x-heat-m1 \
  --reason "Cleared for site houston-plant production runs" \
  -s houston-plant

POST /api/v1/sites/{site}/recipes/master/{name}/release
{"reason": "..."}

A second AuditRecord and a second ElectronicSignature with meaning="released" are created. The recipe's status.releasedBy / status.releasedAt fields populate.

Transition 3: Released → Effective

Activation is the production gate. An Effective recipe is the one operators can actually select in the HMI's batch creation form.

UICLIAPI

Detail page → ACTIONS → Make Effective (the button's label, while its dialog is titled Activate Recipe) → enter reason → confirm. Same ACTIONS panel and reason modal as above.

dcs recipe activate product-x-heat-m1 \
  --reason "Effective for production starting batch-001" \
  -s houston-plant

POST /api/v1/sites/{site}/recipes/master/{name}/activate
{"reason": "..."}

Only recipes in Effective state appear in the HMI batch-creation picker. Recipes in Draft / Approved / Released are visible only from /system → Recipes, so engineers can author without confusing operators.

Transition 4: Effective → Withdrawn

Withdrawal retires a recipe. Batches already running against the recipe continue to completion. No new batches can start against a Withdrawn recipe.

UICLIAPI

Detail page → ACTIONS → Withdraw → enter reason → confirm. Same ACTIONS panel and reason modal as above.

dcs recipe withdraw product-x-heat-m1 \
  --reason "Superseded by product-x-heat-m2; last batch completed 2026-04-14" \
  -s houston-plant

POST /api/v1/sites/{site}/recipes/master/{name}/withdraw
{"reason": "..."}

Auditing the full history

Every transition is queryable:

UICLI

/data → Audit Trail. Filter by target kind = MasterRecipe and target name to narrow to one recipe's lifecycle. Each row shows actor, action, timestamp, reason, and the HMAC signature anchor. Click through for the full AuditRecord detail.

# Filter audit records by target kind, time range, and action
dcs audit export --target-kind MasterRecipe \
  --action Approve --format csv -s houston-plant

# Drill into one specific approval by correlation ID
dcs audit trace <correlationID> -s houston-plant

During an FDA inspection, the Audit Trail is the primary evidence for §11.10(e) "secure, computer-generated, time-stamped audit trails" on the recipe lifecycle.

The same trail every lifecycle action above lands in, worked as evidence: a filmed Hold ceremony → its audit row → the HMAC signature card → the signed archive verified with dcs audit verify --archived.

Role summary

Action	Required OIDC group
Create / edit Draft	dcs-engineer, dcs-supervisor, dcs-admin
Approve	dcs-supervisor, dcs-admin
Release	dcs-supervisor, dcs-admin
Activate	dcs-supervisor, dcs-admin
Withdraw	dcs-supervisor, dcs-admin
Start a Batch against an Effective recipe	dcs-operator, dcs-supervisor, dcs-admin

For the full compliance mapping, see 21 CFR Part 11 Traceability and Electronic Signatures in Security Operations.

Recipe approval covers the recipe lifecycle (Draft → Approved → Released → Effective). The control logic those recipes invoke (the ControlProgram / ControlModule resources) is governed separately by the Change Control for Production ControlPrograms gate, which enforces segregation of duties on edits to the underlying control code in namespaces labelled dcs.io/production=true.

Recipe versions

A product's versions are separate MasterRecipe resources. That is what lets version 2 stay Effective in production while version 3 sits in Draft awaiting approval. What ties them together is spec.productID: every recipe carrying the same product ID is one product family, and within a family each spec.version identifies exactly one recipe (the gateway rejects a duplicate product + version pair on create, update, and dcs apply).

You never compose a version number or a resource name by hand. New Version (on the master recipe detail page or the list row menu) clones the recipe into a new Draft: the version increments across the whole product family (choose major, minor, or patch), the resource name is derived from the product ID and new version, and the author is stamped from your session. The same operation is available to integrations as POST …/recipes/master/{name}/new-version (see the API Reference). Creating a recipe from scratch starts its product at version 1.0.0.

Two version notions coexist deliberately. spec.version is the document-control version of the recipe as an ISA-88 recipe-header identification, the thing quality signs off on. The numbered revision snapshots audit every approved edit within one version. Fixing a typo in a Draft bumps nothing, and running a changed process is a new version.

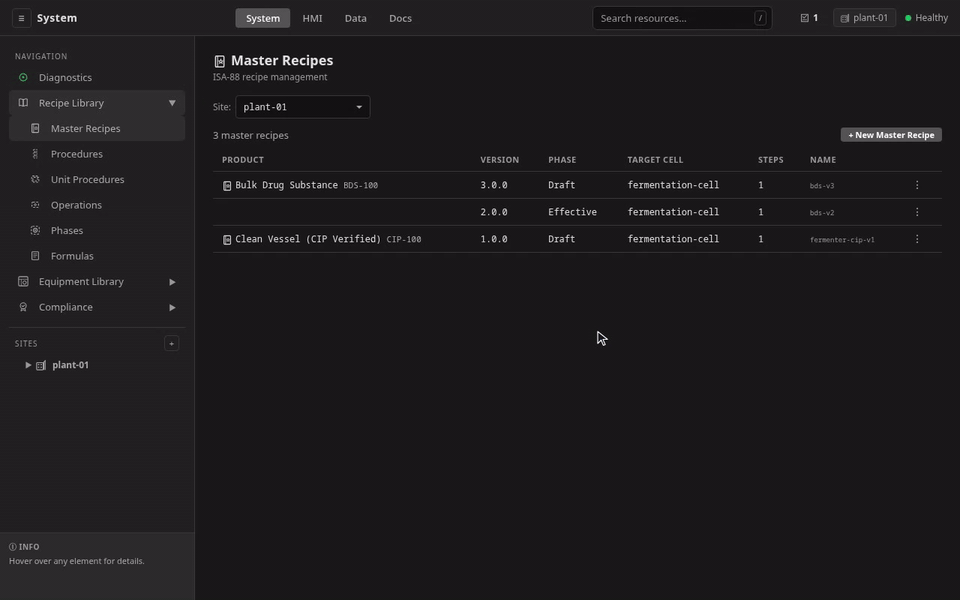

Exactly the paragraph above on camera: New Version derives 4.0.0 and the resource name server-side from the product family, the Draft inherits the full spec, and the revision's formula is authored.

Viewing recipes

UICLI

/system → Recipes. The site picker at the top filters the list. Recipes group by product: each row shows Product, Version, Phase, Target Cell, Steps, and (demoted, in monospace) the resource name. Click a row for the full detail page with parameters, target units, procedure preview, lifecycle buttons, and audit history.

dcs get masterrecipes  -s houston-plant
dcs get controlrecipes -s houston-plant

Deleting recipes

Two preconditions apply to a MasterRecipe, and they answer different questions.

The first is the approval lifecycle. A MasterRecipe can only be deleted while it is Draft, Rejected, or Withdrawn. Approved, Released, and Effective recipes are in active use and must be Withdrawn first.

The second is execution, and it holds in every phase the first one admits. A recipe a batch has not finished with cannot be deleted at all. A running batch re-reads its MasterRecipe on every reconcile, and the ISA-88 §8.6 unit-failure supervision runs downstream of that read. Deleting the recipe therefore switches those checks off silently while the equipment keeps running. The lock stays on past the terminal phase until the batch production record is written, because that record freezes the recipe spec as the batch's as-run snapshot (21 CFR Part 11).

The gateway returns HTTP 409 in either case and records the refused attempt in the audit trail. Every deletion captures a reason in the audit trail (21 CFR Part 11 §11.10(k)).

UICLI

/system → Recipes → Master Recipes → click the recipe. The Delete button appears in the Actions section when the recipe's phase allows deletion (Draft, Rejected, or Withdrawn). Clicking it opens the standard destructive-action confirmation dialog: type the recipe name to confirm, enter a reason, then click Delete.

dcs delete masterrecipe chemical-mix-cell1 -s houston-plant

ControlRecipes are owned by their Batch (via ownerReference) and are automatically garbage-collected when the Batch is deleted.

Deleting one directly is refused for as long as its batch exists. The ControlRecipe is that batch's as-run recipe, carrying the resolved parameters and the unit bindings the batch actually ran on, and nothing else in the cluster holds a copy of them. Delete the batch instead, which removes the ControlRecipe with it.

The procedural templates a recipe names are locked the same way. A PhaseTemplate, OperationTemplate, UnitProcedureTemplate, or ProcedureTemplate that an unfinished batch's recipe resolves cannot be deleted, because the procedural tree is instantiated from those templates and a batch whose tree has not been built yet would park at Running with nothing under it. Templates a finished batch used are free to delete, since a finished batch instantiates nothing further.
