Control Module: discrete-valve

A recipe-driven binary on/off valve. Use this template whenever a process needs a two-position valve (open or closed) driven by a digital output and verified against a single digital feedback input.

Where to find it

System endpoint → Equipment Library → Control Modules tab → select discrete-valve.

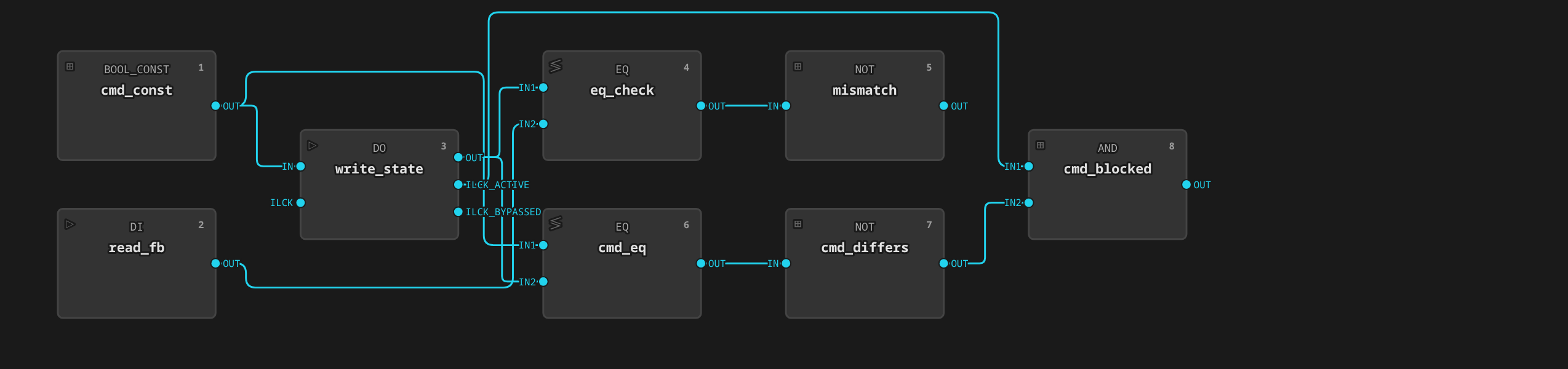

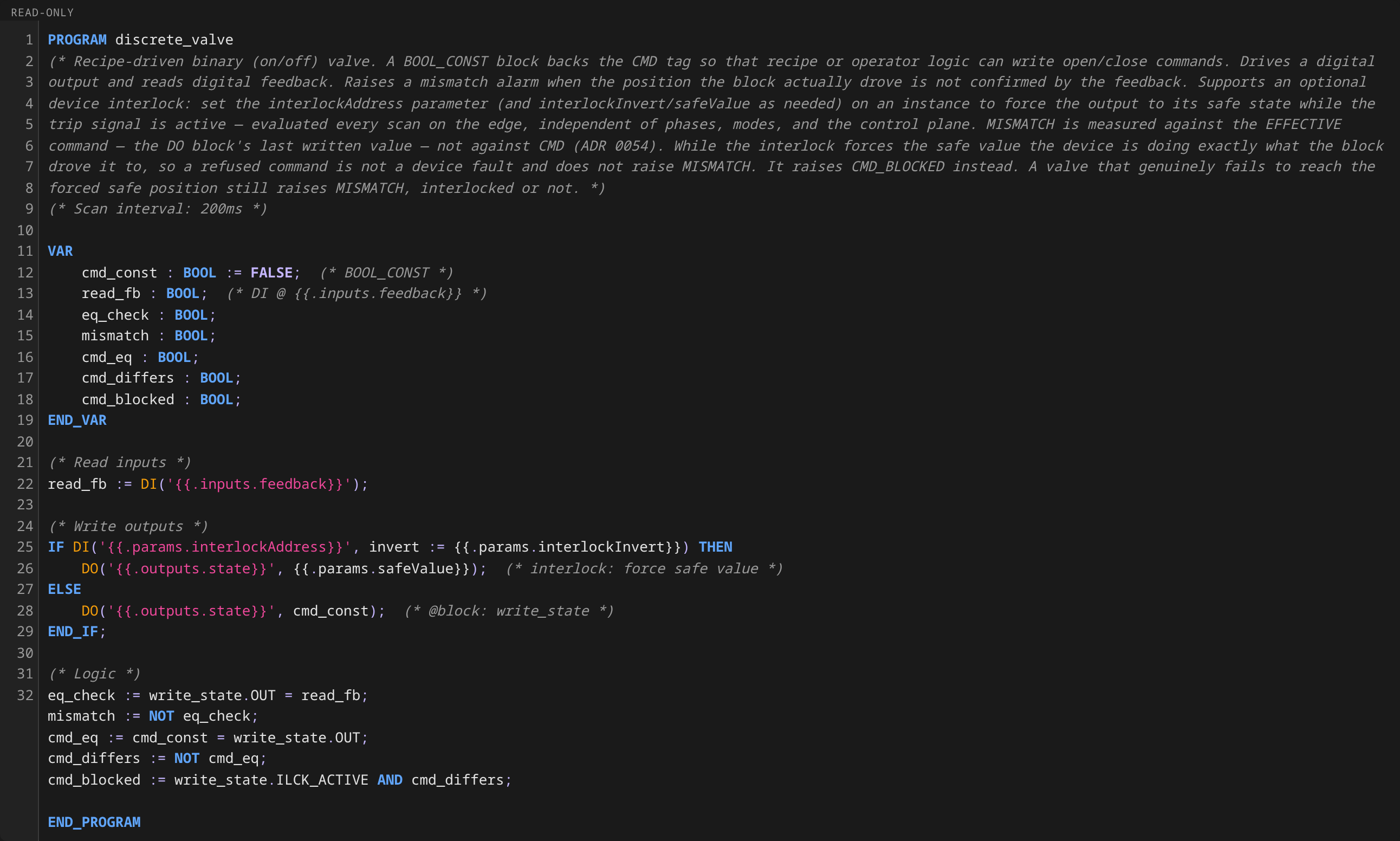

FBDST

What you see on the faceplate

When this template is instantiated on a Unit (for example, as r1-wfi-valve), clicking its symbol on the unit detail view opens a faceplate with:

Element	Meaning
CMD	Current open/close command (writable)
FB	Valve position feedback (read-only)
MISMATCH	Driven position not confirmed by feedback (device fault)
CMD_BLOCKED	The device interlock is defeating a contrary standing command
ILCK	Device interlock active — the output is being forced to its safe state

The faceplate also shows ISA-88 state and mode, and any ISA-88 commands valid for the current state (Start, Stop, etc.). These apply to the surrounding equipment module or unit. The valve itself carries no ISA-88 commands.

Tags

The template declares deviceClass: valve and a role on each tag (ADR 0016). The HMI renders from these declarations and never infers meaning from moduleType or tag names. The FB tag's role: state makes its value the unit card's prominent status word and the faceplate STATE row.

Tag	Type	Access	Role	Description
CMD	Boolean	read/write	command	Open (true) or close (false) command. Recipe logic or operator writes this.
FB	Boolean	read	state	Valve position feedback from the field. Shown as the card's prominent status word.
MISMATCH	Boolean	read	alarm	true when the position the block drove and FB disagree after the scan cycle. Measured against the driven value (CMD plays no part), so an interlock refusing a command is not reported as a device fault (ADR 0054). Typically wired into an Alarm CRD with exceptionAction: Hold.
CMD_BLOCKED	Boolean	read	interlock	true while the device interlock is forcing the safe value and CMD disagrees with it — a command the plant is actively refusing. Alarm it without an exceptionAction (why). Labels: Blocked/Clear.
ILCK	Boolean	read	interlock	true while the device interlock is forcing the output to its safe state. A trip that defeats a command also raises CMD_BLOCKED, which is the rule to alarm. Reserve a TagTrue: ILCK rule for interlocks whose trip is abnormal in itself (why).
ILCK_BYPASSED	Boolean	read	interlock	true while the device interlock is bypassed by a gated, time-boxed override (ADR 0010). Labels: Bypassed/Armed.

Parameters

Parameter	Default	Meaning
interlockAddress	(empty — interlock disabled)	Device address of a boolean trip signal, read by the valve's output block every scan. While the signal is tripped, the output is forced to safeValue.
interlockInvert	false	Trip while the signal is false (with the invert off, true trips).
safeValue	(empty — de-energize/close)	Output value forced while interlocked. Set true only for energize-to-safe valves (e.g. a vent that must open on trip).

Setting interlockAddress on an instance is all it takes to enable the device interlock. See Alarms and Interlocks → Pattern 0 and the shipped mt1-outlet-valve example (interlocked against the inlet valve's feedback).

Faceplate labels

The labels shown on the faceplate come from the per-tag trueLabel / falseLabel fields in the template:

Tag	trueLabel	falseLabel
CMD	Open	Close
FB	Opened	Closed
CMD_BLOCKED	Blocked	Clear
ILCK	Tripped	Clear

Because FB carries role: state, the card and faceplate read the actual position (Opened/Closed). The CMD verbs Open/Close belong to the command alone. This designation supersedes the former state_tag parameter.

The scan interval is fixed at 200 ms (spec.scanInterval).

How it works

Each scan cycle, the runtime:

1. Evaluates the device interlock (if interlockAddress is set): while the trip signal is active, or unreadable (which fails safe), the digital output is forced to safeValue and ILCK reads true.
2. Otherwise writes the current CMD value to the digital output (state).
3. Reads the digital input (feedback) into FB.
4. Compares the value it drove in step 1/2 against FB — if they disagree, raises MISMATCH. A tripped interlock holding the valve against the recipe's command does not show up here: the valve went exactly where it was driven. That case raises CMD_BLOCKED instead (ADR 0054). A valve that fails to reach the forced safe position is a genuine fault and does raise MISMATCH.

MISMATCH is a point-in-time comparison with no debounce. For valves with slow travel times, wire MISMATCH into an AlarmDefinition with condition.type: TagTrue and a debounceSeconds window matching the valve's worst-case travel time. See Alarms and Interlocks for the full pattern, and examples/riverbend/25-alarms.yaml for a working set of MISMATCH alarms covering every discrete valve in the reference plant.

Reference instances

The reference plant uses discrete-valve for every binary valve in the process:

Unit	Instance	Purpose
reactor-1	r1-wfi-valve	WFI supply to the reactor
reactor-1	r1-n2-valve	Nitrogen blanket supply
reactor-1	r1-vent-valve	Reactor headspace vent
reactor-1	r1-sample-valve	Product sample point
mix-tank-1	mt1-inlet-valve	Raw material inlet
mix-tank-1	mt1-outlet-valve	Transfer to reactor
mix-tank-1	mt1-wfi-valve	WFI supply to the tank
filter-dryer-1	fd1-feed-valve	Slurry feed from reactor
filter-dryer-1	fd1-filtrate-valve	Filtrate drain to waste
filter-dryer-1	fd1-wash-valve	Wash solvent inlet
filter-dryer-1	fd1-vent-valve	Vent / vacuum break

Try it

From the HMI:

1. Process → riverbend → pharma-area → sim-cell → reactor-1
2. Click the r1-wfi-valve symbol on the unit detail view
3. On the faceplate, toggle CMD — the FB value should flip within one scan cycle (the IOModule's inline simulation writes the feedback equal to the command)
4. To see MISMATCH trip, edit the IOModule's spec.simulation to introduce a feedback fault and watch the tag turn true
