SCADA/HMI Integration API

The gateway is an API, and the HMI it ships with is one client of that API. A plant that already has a frontend its operators know can keep that frontend and run Cloud-Native DCS as the control system behind it. Everything an operator's window needs is reachable from outside: live values, tag writes, ISA-88 mode changes, ISA-88 commands, alarms with acknowledgement, and the audit trail that records all of it.

This page documents those surfaces for an external SCADA (Ignition, WinCC, AVEVA), for a custom HMI, and for anything else that speaks REST, WebSocket or SSE. They are the only northbound integration surfaces. The gateway does not expose an OPC UA server. OPC UA in Cloud-Native DCS is southbound only: the unit runtime acts as an OPC UA client toward field devices (see I/O and Device Drivers).

The built-in HMI runs at /hmi, with real-time process displays, equipment faceplates, alarm management, and batch execution. Trending lives in the Data endpoint (/data), one click from any faceplate (see Web UI Guide for details). It is a browser client of the routes documented below and holds no private channel to the plant.

Browser-based users authenticate via the login page at /login. API integrations use Bearer tokens directly.

Bring your own frontend

A frontend that speaks these surfaces can be the operator's window. Each row below is something that window has to do, and the route or channel it does it through.

What an operator's window needs	Where it comes from
The tag list for a site	Tag discovery, and browse with live values for a cold start
Live values	The WebSocket tags channel, or SSE
Tag writes	REST, or the WebSocket write frame
ISA-88 mode changes	POST .../mode
ISA-88 commands	REST, or the WebSocket command frame
Alarms and acknowledgement	Alarm integration, live on the alarms channel
Equipment health	The cmhealth channel
The audit trail	GET /api/v1/sites/{site}/audit (API Reference)

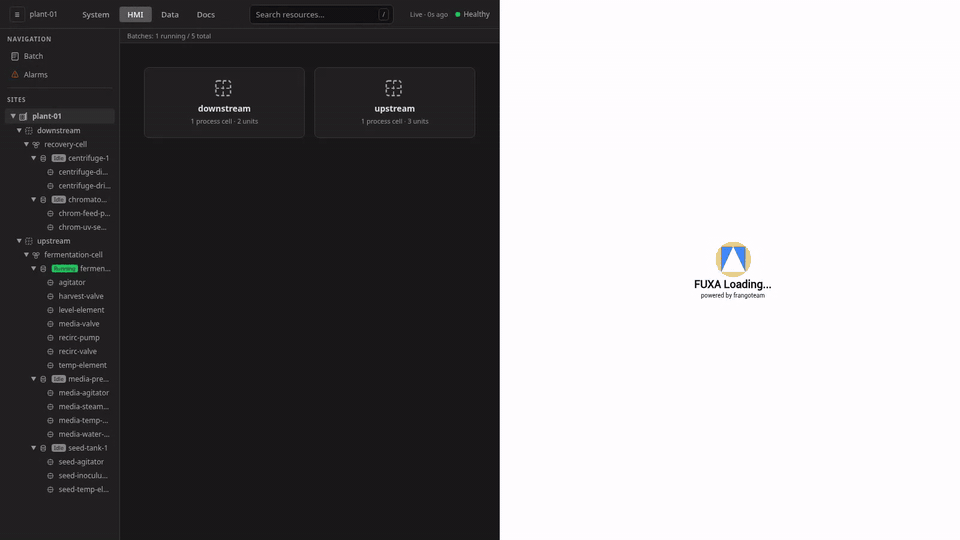

The clip below is somebody else's frontend running our plant. The SCADA is FUXA, which is open source and therefore reproducible by any reader. Its screen is a mimic drawn in FUXA's own process-engineering symbol library and bound to our tags. Every ceremony in the recording is performed on that screen: the ISA-88 mode change, the setpoint write, the command that starts a machine, the batch hold with its typed reason, the restart, and the alarm acknowledgement. Our own HMI is on the left throughout, doing what any other client of the API does, and the recording ends on the audit trail those actions left behind.

FUXA reading our plant over MQTT with its own driver, and running it through the REST routes documented below. Every element of the mimic is a FUXA symbol bound to one of our tags, and every ceremony (the mode change, the write, the start command, the hold and restart, the acknowledgement) is performed on FUXA's screen. The recording closes on our own audit trail.

The gateway process stays

Declining the built-in HMI is a decision about the UI. The gateway carries the API, authentication and the role model, the ISA-88 mode barrier that refuses a write to a control module in Automatic, and the audit trail that records every write and every command. The unit runtime's HTTP API is an internal interface between the gateway and the runtime, and a frontend addressing it directly would bypass the enforcement the 21 CFR Part 11 and ISA-88 claims rest on. That topology is unsupported.

What a replacement frontend has to accept today

One limit is worth knowing before an integrator sizes the work, because it is not configurable in a deployment. Neither transport recovers the frames a client missed. An SSE stream that resumes from its last event id is replayed what changed while it was away. That replay is where the plant stands, and what happened in between is gone. The WebSocket holds no backlog at all. Anything a slow consumer shed is gone from both, and that question is answered by the alarm history and the audit trail. See What a reconnecting client gets.

A second limit is worth sizing, since a deployment controls it. Streaming connections are capped per source IP, counted across WebSocket and SSE together, at ten by default. A redundant SCADA pair usually reaches the gateway through one egress address, so both halves draw on that one budget. The number is a deployment setting (see Connection Limits).

Authentication

All API requests require authentication. The gateway supports two auth modes:

• OIDC (--auth-mode=oidc): Bearer token from your identity provider (Keycloak, Auth0, Dex, etc.)
• None (--auth-mode=none): Development/testing only. All requests get admin privileges

Roles and permissions

Authorization is permission-based (ADR 0005), with groups one step removed: every API route is gated on a permission (read, operate, operate-lead, engineer, supervise, admin, …), and the caller's IdP groups resolve to permissions through the deployment's role table. The shipped defaults map dcs-operator → read, operate. dcs-lead-operator, dcs-engineer, and dcs-supervisor add operate-lead, engineer, and supervise respectively. dcs-admin holds every permission, and dcs-viewer holds read alone. Deployments can redefine this table without code changes (see Security Operations for the full role model).

Tag read endpoints require the read permission (any shipped role). Tag write and ISA-88 command endpoints require operate (shipped: dcs-operator and above). The OPC UA discovery endpoints require engineer: they mutate nothing, and they still make the gateway open an outbound session to an endpoint the caller names, which is a capability of the Device Discovery wizard and not of a frontend.

dcs-viewer is the shipped grant for a frontend commissioned to render the plant without commanding it, which is the posture the clip below films. It is a real deployment posture in its own right, since an integration is usually trusted with reads before it is trusted with writes.

That difference is what decides whether a replacement frontend can command the plant, and the gateway decides it for every frontend alike. The clip below issues one command twice from the same SCADA screen, seconds apart, against the same tag and with the same value. The only thing that changes between the two is which of the plant's SCADA accounts the request carries. The account holding read alone is refused by name, the account holding operate is accepted, the pump moves only for the second, and the audit trail carries a row for each against the account that made it.

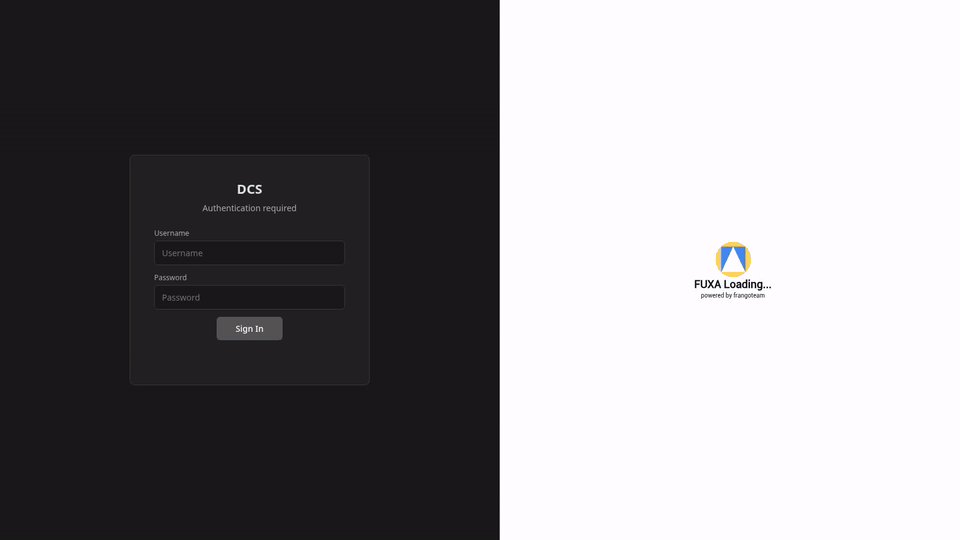

One command, one screen, two accounts. The permission tier is enforced at the gateway, so it applies to a replacement frontend exactly as it applies to ours. Both the refusal and the write are recorded against the account that made them.

Each operation also carries a stable action name, and a deployment can grant or strip one action without moving a role between permission tiers (ADR 0024, catalog in Action Catalog). An operation reachable over more than one transport shares one action name across them, so a deny entry for tag:write refuses the REST route and the WebSocket frame alike. Reading works the same way. A subscription admits through the action a client would use to poll the same data over REST, so a deny entry for tag:read refuses the REST route and the tags subscription together.

Site scoping

A token whose groups include dcs-site-{name} is confined to that site. Every REST route names its site in the path and answers 403 Forbidden outside it. The live transports answer the same way, in the two shapes a stream can ask the question:

• A subscription that names a site the caller cannot see is refused with an error frame, so the caller hears the refusal.
• A subscription that names no site resolves to the caller's own site alone. A token carrying no dcs-site-* group, and an administrator, are unrestricted and still receive the whole plant.

The SSE route carries its site in the path, so it answers 403 directly.

MES integration API keys are confined to /api/v1/mes/ for IEC 62443 zone separation, and that fence covers the live transports: an integration key is refused at connect on both WebSocket and SSE.

Example: Bearer Token

curl -H "Authorization: Bearer $TOKEN" \
  https://gateway.example.com/api/v1/sites/newark/tags

Every write carries an anti-replay nonce

Anti-replay protection is on by default (IEC 62443-3-3 SR 3.8). It covers every mutating request on this page: the tag write, the ISA-88 mode change, the ISA-88 command, and the alarm acknowledge, shelve and unshelve. Each of them needs an X-DCS-Nonce header whose value the gateway has not seen before. The GET and HEAD verbs are exempt. Discovery, tag reads, the alarm list and the SSE connect need nothing.

Send any value that is unique per request. A UUID v4 is the usual choice, and a client generating a fresh one per request never collides. The gateway remembers each nonce for ten minutes by default.

curl -X POST \
  -H "Authorization: Bearer $TOKEN" \
  -H "X-DCS-Nonce: $(uuidgen)" \
  -H "Content-Type: application/json" \
  -d '{"value": 42.5}' \
  "https://gateway.example.com/api/v1/sites/newark/units/reactor-1/tags/ns=2;s=Setpoint"

Two failures are worth recognising in a client:

Status	Body	Meaning
400 Bad Request	missing required X-DCS-Nonce header	The header was absent. The request was authenticated and site-checked, then refused here — it never reached the route's own permission, equipment-mode or access-level barriers.
409 Conflict	duplicate request nonce	The gateway has already admitted a request carrying this nonce within the last ten minutes.

The order matters when a client is working out what went wrong, because the first barrier to refuse answers and the rest are never evaluated: rate limit (429), then authentication (401), then site scope (403), then the nonce (400 / 409), and only then the route's own checks (403 for a missing action, for Automatic mode, or for a read-only tag).

A 409 says only that the nonce was already spent. The nonce is recorded when the request is admitted, and that request may still have been refused at a later barrier or by the unit runtime. So a client whose write timed out cannot conclude anything from a 409 on the retry. Retrying with a new nonce attempts the write a second time, which is safe for an idempotent setpoint write and is a second discrete action in the audit trail. Where that distinction matters, read the tag back or read the audit trail. The status cannot carry the outcome.

The nonce belongs to the REST surface only. The WebSocket write and command frames carry none, because the connection authenticates once at the upgrade (which is a GET), and the frames that follow are not HTTP requests. The requestId on those frames correlates the reply and is not a nonce. It need not be unique and is never checked for replay.

Tag Discovery

Discover all tags configured in ControlModule CRDs for a site:

GET /api/v1/sites/{site}/tags

Optional query parameters: - unit — filter to tags belonging to a specific unit - moduleType — filter by control module type (e.g., sensor, valve, motor)

Response

[
  {
    "name": "Temperature",
    "address": "ns=2;s=Temp",
    "dataType": "Float",
    "accessLevel": "read",
    "controlModule": "temp-sensor-1",
    "moduleType": "sensor",
    "unit": "reactor-1",
    "equipmentModule": ""
  },
  {
    "name": "RUN_CMD",
    "address": "agitator.RUN_CMD",
    "dataType": "Boolean",
    "accessLevel": "readwrite",
    "controlModule": "agitator",
    "moduleType": "motor",
    "unit": "reactor-1",
    "equipmentModule": ""
  }
]

The address field is the handle every read and write route below takes in its path, and discovery always returns one. A tag configured against a device carries that device's own protocol address, prefixed with the IOModule it reads through when it names one (di-card-1:discrete.3). A tag with no device address is one bound to a function block output or a control program variable, which is how most command and computed tags are built. It is served by its unit runtime under the control-module-scoped path controlModule.tagName, and that is what discovery reports for it. The second entry above is one.

Browse with Live Values

GET /api/v1/sites/{site}/tags/browse

Same filters as /tags, but additionally queries online unit runtimes to merge live values (value, quality, timestamp) into the discovery results. Tags from offline runtimes will have empty value fields.

Tag Read/Write (REST)

List All Tags from a Unit

GET /api/v1/sites/{site}/units/{unit}/tags

Proxies to the unit runtime's tag endpoint. Returns all live tag values.

Read a Single Tag

GET /api/v1/sites/{site}/units/{unit}/tags/{address}

The {address} is a wildcard path segment, so OPC UA addresses with slashes work:

GET /api/v1/sites/newark/units/reactor-1/tags/ns=2;s=Weight

Write a Tag

POST /api/v1/sites/{site}/units/{unit}/tags/{address}

Requires the tag:write action, which the shipped roles grant at the operate permission (dcs-operator and above). Creates an audit trail entry.

{ "value": 42.5 }

Response:

{ "ok": true, "address": "ns=2;s=Weight", "message": "tag written" }

The gateway answers 403 Forbidden when it bars the write itself: the caller's role does not hold the action, the addressed control module is in Automatic mode, or the tag declares accessLevel: read. A write that reached the unit runtime and came back non-2xx is passed through with its own status and reason.

This request needs an anti-replay nonce

Like every POST on this page, the tag write requires a unique X-DCS-Nonce header (see Every write carries an anti-replay nonce for the worked call). Without it the gateway answers 400 Bad Request before any of the barriers above are reached.

Real-Time Subscriptions

Presenting the token on a live transport

Both live transports accept the bearer token in an Authorization: Bearer <token> header or in a ?token=<token> query parameter. The header is the recommended form. Reach for the query parameter only when the client cannot set a header on the dial.

A browser is that client. Neither the WebSocket constructor nor EventSource accepts request headers. A page therefore has no way to present a token except in the URL, and our own HMI and terminal use the query form for that reason. A server-side integration has no such limit. A SCADA gateway, a historian bridge or a curl probe should send the header.

The preference is about where the value comes to rest. A header is read by the gateway and goes no further. A query string is part of the request line. Every reverse proxy, ingress controller and TLS-terminating load balancer in front of the gateway writes that line to an access log, and those logs are normally shipped to an aggregator that does not treat them as secret material. The same value lands in any HAR capture or network trace a client exports for a support ticket. The gateway's own log records the request path without the query string. The exposure therefore sits in the hops in front of the gateway.

The gateway accepts both forms and does not try to tell them apart. Nothing in a request separates a client that could have sent a header from one that could not. A rule refusing the query parameter whenever the header "was available" would be guessing at that difference, and it would refuse the browser case it had no way to identify.

The query parameter carries a gateway session token or an OIDC access token, never an API key. An API key is presented under the ApiKey scheme in the Authorization header, which ?token= has no way to express. MES integration keys are refused on these transports in any case (see Site scoping).

Treat a token that has travelled in a URL as known to every hop that carried it. The remedy is to end the session, which also closes the streams that session opened (see A stream ends when the identity behind it does). A short configured session duration limits how long such a token is worth anything.

WebSocket

Connect to the WebSocket endpoint with the token in a header:

wss://gateway.example.com/api/v1/ws
Authorization: Bearer <token>

A browser client cannot set that header. It presents the token in the URL instead:

wss://gateway.example.com/api/v1/ws?token=<bearer-token>

Presenting the token on a live transport covers which form to use.

Subscribe to Tag Updates

{
  "type": "subscribe",
  "id": "my-sub-1",
  "channel": "tags",
  "filter": {
    "site": "newark",
    "unit": "reactor-1",
    "addressPattern": "ns=2;s=*"
  }
}

The addressPattern field is a glob over the whole address: * matches any run of characters, ? matches any single character, and [abc] is a character class, which also accepts ranges ([0-9]) and negation ([^0-9] or [!0-9]). There is no separator character and no escape character. A slash is an ordinary character, so * spans one and ns=2;s=* covers ns=2;s=Skid1/Line2/Temp the same way it covers ns=2;s=Weight.

A pattern the gateway cannot parse (an unterminated [ class, or a range written backwards) comes back as an error frame and registers no subscription:

{"type":"error","message":"invalid addressPattern \"ns=2;s=[Temp\": unterminated '[' character class"}

Channels and what each one requires

Every channel admits through the action a client would use to poll the same data over REST. All four are read-tier, so every shipped role holds them. A deployment that strips one in its roles file bars that role from the channel and the REST route together.

Channel	Action	REST equivalent
tags	tag:read	GET /api/v1/sites/{site}/units/{unit}/tags/{address}
alarms	alarm:list	GET /api/v1/sites/{site}/alarms
states	overview:read	GET /api/v1/sites/{site}/overview
cmhealth	controlmodule:list	GET /api/v1/sites/{site}/controlmodules

A subscribe frame the caller cannot have comes back as an error frame naming the missing action, and no subscription is registered:

{"type":"error","message":"forbidden: action \"tag:read\" (default tier \"read\") denied for user \"Operator\""}

The refusal is explicit because the alternative is not: a subscription that is accepted and then delivers nothing is indistinguishable from a plant with nothing to report.

Sequence numbers and gap frames

Every frame the gateway sends carries seq, a counter that starts at 1 on the connect and rises by one per frame. It counts the frames the gateway sent to this connection. Delivery is a different matter, and a jump in the numbers you receive is exactly the number of frames you did not get.

Each connection holds a buffer of 256 frames. A consumer that reads more slowly than the plant publishes fills it. The gateway then sheds the live frames that find no room, so every other consumer stays ahead of the slow one. The connect-time snapshot is the exception: it waits for room, because nothing restates it. See What a reconnecting client gets. When room appears again it sends a gap frame ahead of the next message:

{"type":"gap","seq":4211,"dropped":17}

The 17 lost frames are sequence numbers 4194 through 4210 (the dropped numbers immediately below the gap frame's own). Treat a gap as an instruction to re-snapshot. An event log entry alone leaves the display wrong. What you lost is unknown, and the stream cannot return it. The gateway holds no per-connection backlog.

The two channels this matters on are alarms and states. A tag value is republished every 200 milliseconds whatever the process is doing. A lost one corrects itself within a tick, and a display is wrong for a fifth of a second. Alarms and states publish on transition only. A lost alarm frame is an alarm nothing later restates, and a standing alarm may not transition again for hours. A consumer that trusts what it holds annunciates nothing. Re-read GET /api/v1/sites/{site}/alarms and GET /api/v1/sites/{site}/overview on a gap, and reconcile what you hold against them.

A consumer that ignores gap frames still has the sequence, which is why the count and the numbering are both there: the gap frame is the announcement, and the jump is the arithmetic that survives losing the announcement too.

Operators see the same fact from the other side, in the dcs_gateway_stream_frames_dropped_total counter (monitoring-metrics.md).

seq and eventId are different numbers

A frame that reports something that happened in the plant also carries eventId. Where seq counts what one connection was sent, eventId numbers the event across every connection the gateway serves, so two consumers watching the same site see the same eventId on the same frame and their seq values have nothing to do with each other.

Frames that describe the connection and nothing in the plant carry no eventId: the subscribe acknowledgement, an error, a gap, the broker-status push, and the SSE session-ended event.

The number is the resume point an SSE stream is resumed from. On the WebSocket it is informational. This transport has no resume. A client that reconnects sends its subscribe frames again, and that asks for the channel afresh. The difference is never replayed.

Tag quality values

Tag messages carry a quality field that external SCADA systems should respect:

Quality	Meaning
Good	Live engineering-scaled value from the Control Module's FB network
Bad	Driver reported a hardware fault (wire break, communication failure)
Raw	Driver-direct read because the CM's FB network is not running; value is unscaled and should not be treated as a current PV
Uncertain	Quality could not be determined

A Raw quality means the runtime is falling back to direct I/O reads. The ISA-88 continuous-observability safety net keeps the CM value visible, but operators must know the value is not engineering-scaled.

CM FB-network health channel

The cmhealth channel reports per-Control-Module FB-network health independent of procedural state. Subscribe on connect to catch the retained current state for every CM:

{
  "type": "subscribe",
  "id": "h1",
  "channel": "cmhealth",
  "filter": { "site": "newark" }
}

Messages:

{"type":"cmhealth","site":"newark","kind":"ControlModule","name":"reactor-temp","state":"Running","ts":"..."}
{"type":"cmhealth","site":"newark","kind":"ControlModule","name":"reactor-temp","state":"Down","message":"removed","ts":"..."}

States: Running, Down, CompileError, Unknown. The message field carries a free-text reason when present.

The channel is on the SSE transport too, where the channel query parameter names it (SSE has no subscribe frame). It sits outside that transport's default set (see Server-Sent Events).

Write a Tag via WebSocket

Requires the tag:write action, the same one the REST tag write above admits through. A deployment that refines that action in its roles file binds both transports with one line. The shipped roles grant it at the operate permission (dcs-operator and above).

{
  "type": "write",
  "requestId": "w1",
  "site": "newark",
  "unit": "reactor-1",
  "address": "ns=2;s=Setpoint",
  "value": 75.0
}

The unit field names an ISA-88 Unit, and the gateway resolves that unit's runtime to deliver the write. A ControlModule name in this field does not resolve and the write fails. To address a tag by its control module, use the module-scoped REST route (POST /api/v1/sites/{site}/controlmodules/{cm}/tags/{tag}), which builds the module.tag address on the server. The built-in HMI writes exclusively through that REST route, because its faceplates are keyed by control module.

The write carries the same barriers as its REST twin. A caller without the action, a control module in Automatic mode, and a tag declaring accessLevel: read each get an error frame naming the reason, and the write never reaches the runtime:

{"type":"error","requestId":"w1","message":"equipment is in Automatic mode: agitator.SPEED_SP is in Automatic mode, so it is manipulated by its control algorithm. Switch it to Manual first (ISA-88 Table 1)."}

A write that did reach the runtime and was refused there comes back as a result frame reporting the failure, carrying the runtime's reason:

{"type":"result","requestId":"w1","ok":false,"message":"tag agitator.SPEED_SP: access denied"}

Check ok on every result frame. Before the 2026-08-05 fix this frame reported ok: true whatever the runtime answered, so a client written against the older behaviour may be treating the frame's arrival as success.

Send ISA-88 Command via WebSocket

Requires the command:send action, the same one the REST command endpoint admits through. The shipped roles grant it at the operate permission (dcs-operator and above).

{
  "type": "command",
  "requestId": "c1",
  "site": "newark",
  "kind": "Batch",
  "name": "batch-001",
  "command": "Start"
}

Supported kinds are Batch, and Phase / Operation / UnitProcedure when the named resource is the root of an ad-hoc execution. ISA-88 commands flow through the Batch resource, which propagates them down its procedural tree. An ad-hoc run has no Batch, so its root is addressed by name. Anything else is rejected with an error naming what to command instead. This frame and the REST command endpoint apply the identical rule, so a client cannot get a different answer by changing transport. Valid commands: Start, Stop, Hold, Restart, Abort, Reset, Pause, Resume.

A stream ends when the identity behind it does

Authentication happens once, at the connect. A connection held for months outlives the credential that opened it, so the gateway keeps checking: it closes the connection when the session behind it is revoked (logout or an administrator terminating it), when the bearer token passes its own exp, or when the session's inactivity window elapses. A revocation reaches an open connection immediately. The other two are noticed within 50 seconds.

The close carries code 4001 and a reason naming which of the four it was. Treat 4001 as terminal: reconnecting with the same credential answers 401, so a client that reconnects on its normal backoff spends the rest of the shift proving it. Acquire a new token, then reconnect.

close 4001 "session ended: terminated by administrator"
close 4001 "access token expired"
close 4001 "auth: session terminated after inactivity"

An open connection is not activity for the purpose of the inactivity window. The window measures what the user does. A stream held by an idle session ends with the session, and holding the stream open extends nothing.

The audit record precedes the frame

For both mutation frames, the gateway writes the audit record before it sends the frame that answers the request, and that holds for a refusal as well as for a success. A client that reads the audit trail as soon as its frame arrives sees its own write or command already there. The REST tag-write and command endpoints order the two the same way, so an integrator cannot tell the transports apart by querying the trail.

Server-Sent Events (SSE)

SSE provides a simpler alternative to WebSocket, with built-in browser reconnection:

GET /api/v1/sites/{site}/events/sse?unit=reactor-1&channel=tags,alarms

Query parameters: - unit — filter tag events to a specific unit - channel — comma-separated list of tags, alarms, states and cmhealth (default: the first three). A name this route does not recognise is refused with a 400 (#1446)

Authentication uses the Authorization: Bearer <token> header. A browser EventSource cannot set that header and presents the token as a ?token=<token> query parameter instead. See Presenting the token on a live transport for why the header is preferred wherever a client can send one.

Every channel in the table above can be named here, cmhealth included. The default is the three channels above, and it does not grow. Adding a channel to this transport therefore never demands a new action of a stream that names none. A consumer that wants control-module health asks for it: channel=tags,alarms,states,cmhealth. A channel name the gateway does not know is a 400, because the alternative was a stream that opened with no subscriptions and then said nothing for as long as you held it.

The site in the path is checked against the caller's site scope, and every channel the connection opens is checked against its action from the table above. Either refusal is a 403 Forbidden on the connect, naming what was missing. A caller barred from one channel is refused the connection whole. A stream quietly missing a class of event is what that refusal prevents.

An idle stream is kept open by a comment frame every 25 seconds:

: keepalive

Every SSE parser ignores it, so it reaches the proxies in between and no further. It is what stops an idle-timeout proxy from closing a stream that has nothing to report. Because it arrives on a schedule, it is also how a consumer tells a healthy quiet plant from a stream that died. It carries no seq: it is not a frame, and numbering it would put a hole in the sequence every idle tick.

Events are sent in standard SSE format:

id: 8f2c41ab90d3e517-4211
event: tag
data: {"seq":41,"eventId":4211,"type":"tag","site":"newark","unit":"reactor-1","address":"ns=2;s=Temp","value":75.2,"quality":"Good","ts":"2026-01-01T00:00:00Z"}

id: 8f2c41ab90d3e517-4212
event: alarm
data: {"seq":42,"eventId":4212,"type":"alarm","site":"newark","name":"alarm-Unit-reactor-1","severity":"High","state":"ActiveUnacknowledged","message":"Overtemp"}

The id line is the resume point.

Sequence numbers and gap frames work here exactly as they do on the WebSocket, and a gap arrives as its own event:

event: gap
data: {"seq":43,"type":"gap","dropped":17}

A gap frame carries no id, so it does not move the resume point.

A new stream opens with a snapshot: every channel the stream opened replays the gateway's last-known state before the first live frame arrives. See What a reconnecting client gets for what each channel holds and what it does not.

Resuming an SSE stream

Frames carry an SSE event id, and the gateway honours Last-Event-ID on the reconnect:

id: 8f2c41ab90d3e517-4211
event: tag
data: {"seq":41,"eventId":4211,"type":"tag","site":"newark","unit":"reactor-1","address":"ns=2;s=Temp","value":75.2,"quality":"Good","ts":"2026-01-01T00:00:00Z"}

A browser's EventSource sends the last id back automatically. Any other client sets the header itself. A stream that resumes is replayed only what changed while it was away. That economy is what makes the protocol's own reconnection cheap on a site with a couple of thousand tags behind a proxy that closes an idle stream.

The id has two parts: the gateway's numbering and the frame's place in it. The first half is minted when the process starts. A token issued by a gateway that has since restarted, or by another replica behind the same address, is recognised as belonging to nobody and answered with the full snapshot. That is a slower reconnect and never a missing one. A token the gateway cannot read is answered the same way.

Two things deliberately do not move the resume point. Frames with no eventId leave it where it was, as the protocol specifies. And the frames of the opening snapshot publish no id until the last of them is written. A connection that dies in the middle of a snapshot resumes from where it stood before, with no resume point on a frame it never received.

What resuming does not do is recover frames dropped by a slow consumer. A gap frame means here what it means on the WebSocket: what you lost is unknown, and the gateway holds no per-connection backlog. Reconnect without Last-Event-ID to force the full snapshot, and reconcile against the REST reads as above.

The same session rules apply here as on the WebSocket, and they matter more: SSE reconnection is built into the protocol, so a client that treats every disconnection alike will reconnect into a 401 forever. SSE has no close code, so the gateway names the reason in a final event and then closes the stream:

event: session-ended
data: {"type":"session-ended","seq":118,"reason":"session ended: terminated by administrator"}

Anything reading only message events ignores it, which is why it is the last thing written. The stream ends whether or not the consumer understood it. Handle session-ended and stop reconnecting until you hold a new token.

What a reconnecting client gets

A connection drops. The client reconnects. What does it know?

Every channel replays the gateway's last-known state when a subscription mounts: on each WebSocket subscribe frame, and at the SSE connect for each channel that stream opened. Replayed frames are ordinary frames of their channel's type with "replay":true added, so a client can tell a snapshot from a transition without holding two code paths:

{"seq":3,"subscriptionId":"a1","replay":true,"type":"alarm","site":"newark","name":"alarm-Unit-reactor-1","severity":"High","state":"ActiveUnacknowledged","message":"Overtemp"}

The snapshot obeys the same site scope and the same subscription filter as live delivery, and it consumes sequence numbers like any other frame. It is delivered whole. A full send buffer parks the snapshot until you read, and sheds none of it. How long the snapshot takes depends on how fast you read, and how much of it arrives does not. A live frame published while it is still arriving can still be shed, and that gap is announced the usual way.

What each channel holds:

Channel	The snapshot is	Retention
tags	The last value of every tag the gateway has seen, per site/unit/address	Held indefinitely. Each frame carries the value's own ts and quality, so a value that stopped updating is identifiable as old
states	The last ISA-88 state of every equipment object	Held indefinitely
cmhealth	The last FB-network health state of every control module	Held indefinitely. On SSE the channel has to be named, since it sits outside that route's default set
alarms	The last frame of every alarm the gateway is holding	A resolved alarm (cleared and acknowledged) is replayed for fifteen minutes and then forgotten. A deleted alarm is forgotten at once

The fifteen-minute window is worth designing against. A consumer that reconnects inside it is told the alarm ended and can clear what it was holding. One that reconnects later is not told about that alarm at all. An annunciator that was holding it active must therefore reconcile against the REST list. The frame it would wait for will not come.

The snapshot is the gateway's memory. It is not the plant's history. It holds what this gateway process has seen since it connected to the broker, so a gateway restarted two minutes ago knows two minutes of plant. Treat the REST reads as the authority whenever the two could disagree (on reconnect, and on any gap):

Channel	Read this on reconnect
tags	GET /api/v1/sites/{site}/units/{unit}/tags
alarms	GET /api/v1/sites/{site}/alarms
states	GET /api/v1/sites/{site}/overview
cmhealth	GET /api/v1/sites/{site}/controlmodules

Neither transport recovers the frames a client missed while it was gone. An SSE stream that presents its Last-Event-ID is replayed the part of the snapshot that changed since, and that is still the snapshot (see Resuming an SSE stream). The WebSocket holds no per-connection backlog either. The snapshot tells a client where the plant is now, which is a different question from what happened while it was away. For that second question the answer is the alarm history and the audit trail. The stream cannot answer it.

Not every disconnection is one to reconnect after. A close carrying code 4001, or an SSE session-ended event, means the identity behind the stream ended, and reconnecting on the same credential answers 401 forever. See A stream ends when the identity behind it does.

Nor is every disconnection one a client notices. The WebSocket is ping-driven and fails a dead peer within the pong deadline. SSE has the comment frame every 25 seconds described under Server-Sent Events, which is the same guarantee from the other direction: a consumer that has seen nothing at all for a minute is looking at a stream that is gone. A quiet plant still ticks.

ISA-88 Commands (REST)

POST /api/v1/sites/{site}/command

{
  "kind": "Batch",
  "name": "batch-001",
  "command": "Start"
}

Being a POST, this needs an anti-replay nonce like every other write on this page.

Supported kinds are Batch, and Phase / Operation / UnitProcedure when the named resource is the root of an ad-hoc execution (a run launched against a unit with no Batch to command through). Anything else returns 400 with a message naming what to command instead: for a batch-owned procedural element that is the owning Batch, and for a child of a larger ad-hoc run it is that run's root. The WebSocket command frame applies the identical rule.

ISA-88 Mode (REST)

POST /api/v1/sites/{site}/mode

Requires the mode:set action, which the shipped roles grant at the operate permission (dcs-operator and above).

{ "kind": "ControlModule", "name": "agitator", "mode": "Manual" }

Equipment kinds are Unit and ControlModule, and they take Automatic or Manual. Procedural kinds are Procedure, UnitProcedure, Operation and Phase, and they take Automatic, Semi-Automatic or Manual.

This is how an external frontend clears the Automatic-mode barrier that refuses a tag write, and in the clip above the SCADA performs that ceremony on its own screen: the write is refused, the module is put into Manual from a button in FUXA's faceplate, and the write is then accepted. The gateway answers 409 Conflict while the target sits in a transitional state (Pausing, Holding, Restarting, Stopping, Aborting, Resetting), and 404 Not Found for a name that does not exist. See API Reference for what each mode does once it is set.

Being a POST, this needs an anti-replay nonce. The 409 above is the transitional-state refusal, a different 409 from the duplicate-nonce one. The two carry different messages, and a client that distinguishes them by status alone will read a replayed request as a busy unit.

Alarm Integration

Each POST below needs an anti-replay nonce.

List Active Alarms

GET /api/v1/sites/{site}/alarms

Acknowledge an Alarm

POST /api/v1/sites/{site}/alarms/{name}/acknowledge

Shelve an Alarm

POST /api/v1/sites/{site}/alarms/{name}/shelve

{ "duration": "30m" }

Unshelve an Alarm

POST /api/v1/sites/{site}/alarms/{name}/unshelve

Telling one kind of alarm from another

Two declared fields say what an alarm is about, and they ride the REST list, the WS/SSE alarm frame and the MQTT payload alike:

Field	Meaning
conditionType	The AlarmDefinition condition that raised it — StateEquals, TagHigh, TagLow, TagHighHigh, TagLowLow, TagDeviation, TagTrue, TagFalse or DeviceHealth
value	What the condition matched on: a tag reading for a threshold condition, a NAMUR NE 107 word for a device-health one

Both are absent for an alarm that no AlarmDefinition created. The state generator and the server-condition sweep raise alarms against conditions the definition vocabulary does not express, and a blank is not a condition type.

type does not answer this question. It is Equipment or System, which is the ISA-18.2 category. The condition is a different axis. Neither does the alarm's name or its message answer it: those are operator-facing text with no contract behind them, and deriving meaning from either is what ADR-0016 forbids.

The case this exists for is a maintenance system subscribing for instrument health. Matching conditionType: DeviceHealth and reading the NE 107 state out of value picks device health out of the alarm stream without touching a name. The full convention, including where to read the current health of the instruments that are not alarming, is in Device health for a maintenance system.

Shelving is a consumer contract

ISA-18.2 shelving is a temporary, operator-authorized, audited suppression of a nuisance alarm, and its defining effect is that the alarm stops raising the operator's attention anywhere, in our HMI and in every other annunciator alike. We cannot enforce that in a third-party annunciator. We publish the fact and document the obligation (ADR 0014):

A consumer that performs annunciation — a horn, a flashing banner, a push notification, an escalation, a SCADA alarm raise — MUST NOT annunciate an alarm while it is shelved. The alarm MUST still appear in any alarm-summary or list surface, marked as shelved with its remaining time. Shelving suppresses annunciation, not existence.

Two fields carry it, and they answer different questions:

Field	Where	Meaning
shelved	WS/SSE alarm frame, REST alarm list, MQTT alarm payload	Whether annunciation is suppressed right now. This is the field to key on
shelvedUntil	The same three	RFC3339 deadline the shelf lapses at. Informational — for a countdown or a display

Never derive suppression from shelvedUntil. A shelf that has lapsed leaves the deadline populated until the alarm controller's next reconcile clears it, so a consumer reading a non-empty deadline as suppression silences an alarm that is annunciating. A deadline in the past is not a shelf. Every surface computes shelved against the deadline for you: the alarm controller when it builds the retained MQTT payload the stream frames carry through, and the gateway when it serves the REST list. That computation is exactly why the field is there.

The two transports spell absence differently. On the WS and SSE frame shelved is omitted when false, so an absent field means not shelved. The REST list serves it either way, true or false, because false is the answer a reconnecting client needs most and an omitted field is the one it is most likely to misread.

A shelve publishes once on the transition, and the alarm event is retained. A consumer that reconnects during a shelf is told about it: over the stream by the snapshot, and over MQTT by the retained message. The shelf is never something a client has to have been connected to learn.

Rate Limits

The gateway enforces per-IP rate limiting, with a separate bucket per tier:

Tier	Requests per second	Burst
Read (GET/HEAD on the API)	100	200
Write (POST/PUT/DELETE)	20	40
Static UI assets	500	1000

SCADA clients only ever touch the read and write tiers. The static tier covers the browser UI bundle and is sized in page loads. The buckets are independent, so a burst of writes never costs a client its read allowance. WebSocket and SSE connections are not rate-limited after the initial handshake. What bounds them is the connection ceiling instead.

Which access pattern fits

The limits are generous for every shape but one, and that one is the shape a client tends to reach for first. A per-tag GET reads a single address per HTTP call. A client polling 500 tags at 1 Hz issues 500 requests per second against a sustained 100, which drains the 200-request burst in under half a second and then sits at 429 indefinitely. Discovery and browse calls are never the problem. Those are one request each, however large the plant.

Four shapes are available, and the right one depends on what the client needs:

Access pattern	Use it for	Cost
Subscription (WebSocket or SSE)	Continuous values for a whole plant	One connection. Not rate-limited after the handshake
Bulk unit read — GET /api/v1/sites/{site}/units/{unit}/tags	Polling a unit on an interval	One request per unit per poll
Site browse — GET /api/v1/sites/{site}/tags/browse	A periodic whole-site sweep, or discovery with values	One request, but the gateway fans out to every unit runtime behind it — not a 1 Hz shape
Per-tag read — GET …/units/{unit}/tags/{address}	Spot reads: a diagnostic, an operator's single value, a one-off check	One request per tag. Never the basis of a poll loop

A whole plant belongs on the subscription. Polling belongs on the bulk unit read, which collapses a unit's tags into one call. The per-tag route exists for the spot read, and using it as a scan is what exhausts the tier.

Reading a 429

Every API response carries the current state of the caller's bucket, so a client can pace itself before it is refused:

Header	Meaning
X-RateLimit-Limit	Sustained requests per second for the tier this request was charged to
X-RateLimit-Remaining	Tokens left in the bucket after this request
X-RateLimit-Reset	Seconds until a token frees up. 0 while the bucket has room

A refusal is 429 Too Many Requests with {"error":"rate limit exceeded"}, and it carries Retry-After: 1. That value is a fixed one-second floor. X-RateLimit-Reset on the same response carries the real figure, and a client over the limit by a wide margin will find a second is not long enough. Back off on Retry-After at minimum, and prefer an exponential backoff that starts there.

A 429 is refused ahead of everything else, including the nonce check. A throttled write never reached the handler, and its nonce was never recorded. The retry can carry the same one.

See Security Hardening for tuning guidance.

Connection Limits

One source address may hold at most 10 concurrent live streams by default. WebSocket and SSE count against the same ceiling, because both register with the same fan-out hub and cost it the same.

Ten was chosen for browsers, and a redundant SCADA pair outgrows it sooner than it looks. Both halves subscribe, a plant usually NATs them to one egress address, and a SCADA that opens one connection per area or per screen reaches ten quickly, as does a control room whose stations sit behind one address. The ceiling is a deployment setting. Raise it with gateway.streamLimits.maxConnectionsPerIP in the Helm chart (--max-stream-conns-per-ip on the gateway, MAX_STREAM_CONNS_PER_IP in the environment). There is no unbounded setting, and a value below 1 is read as the default. "No ceiling" cannot be configured. If something in front of the gateway already governs connections, set a number high enough to defer to it.

A connect over the ceiling is refused identically on both transports:

	Refusal
GET /api/v1/ws	429 Too Many Requests — the WebSocket handshake never completes, so no socket opens
GET /api/v1/sites/{site}/events/sse	429 Too Many Requests

Both carry Retry-After: 5 and the body {"error":"connection limit exceeded","status":429}.

Honour the Retry-After. A slot frees when some other consumer disconnects, and your client cannot observe that event. An immediate retry is a guess that will usually be wrong. Reconnecting at once from every refused connection is how a pool that is merely full becomes a reconnect storm.

The 429 is also why the WebSocket refusal is a failed handshake, with no socket that opens and then closes. Earlier releases upgraded the connection and sent a ClosePolicyViolation (1008) close frame. Most client libraries surface that as a protocol error, indistinguishable from a network drop and answered by reconnecting immediately. A handshake that never completes cannot be read that way.

Refusals are counted server-side as dcs_gateway_stream_connections_refused_total, labelled by transport. The plant can see a redundant half that never connected without reading the SCADA's own logs. See Monitoring & Metrics.

Redundant SCADA Pairs

An A/B SCADA pair needs nothing configured on this side. Each half is an ordinary client: it authenticates, subscribes or polls, and writes through the same routes. There is no leader election, no pair registration, and no state on the gateway that distinguishes a hot half from a standby. A standby that holds its own subscription open is told the plant's state on its own connect (see What a reconnecting client gets) and stays current from then on, so a failover costs nothing but the switchover itself.

Two things about the pair are worth deciding deliberately.

Give each half its own identity. The Part 11 audit trail attributes a write to the subject that made it, taking the user id, the display name and the session id from the token the request carried. Two halves sharing one token are one subject in the record, and the only field that could tell them apart is the source IP, and that collapses too the moment they share an egress address. Issue a token per half and the trail names which one acted.

The per-IP limits are shared when the egress address is. Both the rate-limit buckets above and the stream connection ceiling key on the client address, so two halves behind one NAT or one load balancer draw from one allowance. That doubles the arithmetic in the section above: an access pattern each half can sustain alone may exceed the tier when both run it. The stream ceiling is counted across WebSocket and SSE together, so a pair opening several streams per half reaches it sooner than the number suggests. Size it for the pair before trusting the default of ten, and watch dcs_gateway_stream_connections_refused_total, because a standby refused at connect is a half that looks idle and is broken.

The gateway reads the client address from CF-Connecting-IP, then X-Forwarded-For, then X-Real-IP, then the socket. A proxy that preserves the real client address therefore gives each half its own buckets. One that does not merges them.

Integration Examples

Ignition (Scripting)

import system
from java.util import UUID

BASE = "https://gateway.example.com/api/v1/sites/newark"
auth = {"Authorization": "Bearer " + token}
client = system.net.httpClient()

# Tag discovery — one request, however large the plant.
tags = client.get(BASE + "/tags", headers=auth).json

# Poll a unit: one request returns every live value it holds. Do NOT poll
# tag-by-tag — see Rate Limits above for why that pattern exhausts the tier.
values = client.get(BASE + "/units/reactor-1/tags", headers=auth).json

# Spot read of a single tag.
one = client.get(BASE + "/units/reactor-1/tags/ns=2;s=Temp", headers=auth).json

# Write. Every mutating request carries a fresh nonce.
write_headers = dict(auth)
write_headers["X-DCS-Nonce"] = str(UUID.randomUUID())
result = client.post(
    BASE + "/units/reactor-1/tags/ns=2;s=Setpoint",
    data={"value": 75.0},
    headers=write_headers,
)

Grafana (JSON API Data Source)

Point the JSON API data source at: - Tag values: GET /api/v1/sites/{site}/units/{unit}/tags - Alarms: GET /api/v1/sites/{site}/alarms

Python Client

import json
import uuid

import requests
import sseclient

BASE = "https://gateway.example.com/api/v1/sites/newark"
headers = {"Authorization": f"Bearer {token}"}

# SSE streaming. Frames carrying "replay": true are the snapshot the gateway
# sends as the stream opens, not new transitions — apply them to your cache
# without annunciating.
url = f"{BASE}/events/sse?channel=tags,alarms"
response = requests.get(url, stream=True, headers=headers)

last_id = None
for event in sseclient.SSEClient(response).events():
    frame = json.loads(event.data)
    if event.id:
        last_id = event.id         # Send back as Last-Event-ID to resume here.
    if event.event == "session-ended":
        break                      # Terminal: acquire a new token before reconnecting.
    if event.event == "gap":
        last_id = None             # Frames were shed; reconnect without a resume point.
        resnapshot()               # …and re-read the REST snapshot.
    elif event.event == "alarm":
        annunciate = not frame.get("shelved", False)

# A write: bearer token, a fresh nonce, and check the status.
resp = requests.post(
    f"{BASE}/units/reactor-1/tags/ns=2;s=Setpoint",
    headers={**headers, "X-DCS-Nonce": str(uuid.uuid4())},
    json={"value": 75.0},
)
