Ad-Hoc Execution¶

Operators can launch a procedural element (Phase, Operation, UnitProcedure) against an idle Unit without creating a Batch. This is the right path for equipment-oriented work (CIP/SIP cycles, calibration, sampling, equipment commissioning) where a full batch record would not apply.

Scope¶

Ad-hoc execution is supported at three levels:

Level	Use case	Permission	Production-mode signature
Phase	Single equipment action (open valve, take sample, run pump)	`operate`	not required
Operation	Coordinated phase sequence (e.g. CIP cycle: pre-rinse + caustic + acid + final rinse)	`operate-lead`	not required
UnitProcedure	Multi-operation equipment campaign (e.g. full SIP-CIP-leak-test sequence)	`operate-lead`	required

Procedure-level ad-hoc execution is not supported. A Procedure spans multiple units and is, by ISA-88 definition, what a Batch executes. Running a Procedure outside a Batch produces a "batch without a batch record", which breaks 21 CFR Part 11. Use dcs create batch for that.

Eligibility: the `category` field¶

OperationTemplate and UnitProcedureTemplate carry a spec.category field:

equipment — eligible for ad-hoc execution
process — recipe-bound, reachable only through a Batch (the default)

The default is process, so legacy templates and any newly authored templates are locked out of ad-hoc execution until an engineer explicitly opts in. Phase templates are not classified. Every PhaseTemplate is eligible for ad-hoc execution.

Launching ad-hoc execution¶

UICLIAPI

/hmi → Batch in the sidebar (the Batch Execution view) → + New. The dropdown menu offers four entries: Batch, Phase, Operation, Unit Procedure. The Operation and Unit Procedure forms only list templates with category: equipment. The Phase form lists every PhaseTemplate.

Pick a Unit. The picker shows every unit with its live state, and the gateway rejects a launch on anything but Idle (409). Pick a template, override any declared parameters, then Execute. Override rows are generated from the template's parameter interface, and there is no way to add one it doesn't declare. Ad-hoc executions appear in the same list as Batches, tagged with the matching Type chip. Filter by Phases, Operations or Unit Procedures to narrow the view.

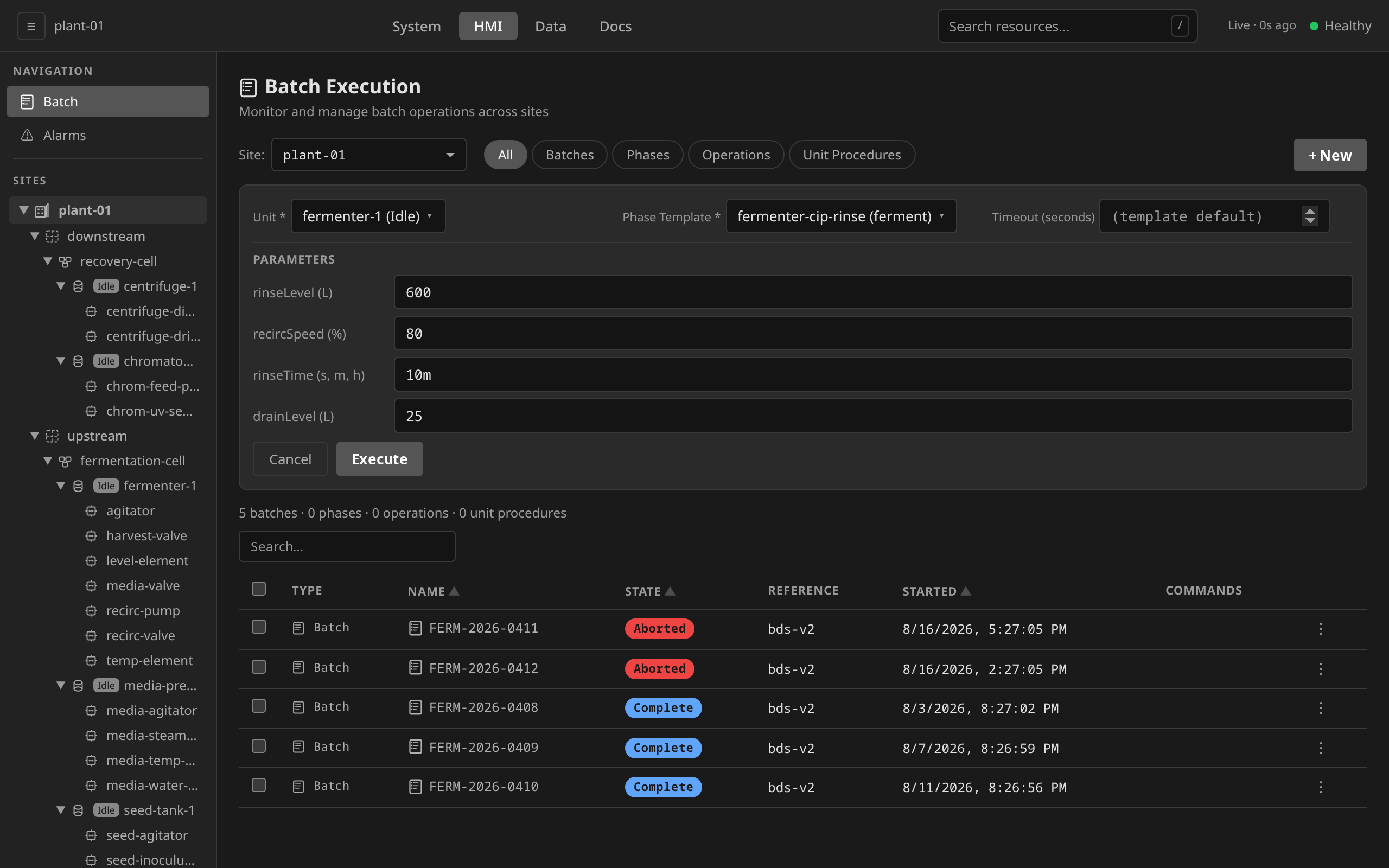

Ad-hoc Phase launch form: Unit and Phase Template pickers, timeout field, and the template's four declared parameters rendered as override rows above Cancel and Execute

The + New menu held open showing exactly Batch, Phase, Operation, and Unit Procedure; the Phase form with the unit picker listing every unit and its live state, the unfiltered phase-template picker, parameter override rows with an invalid duration flagged on blur and corrected; Execute landing the run in the unified list with a Phase type chip and the type-filter chips narrowing to it — A CIP rinse launched ad-hoc on the idle fermenter: the four-entry menu (no Procedure, by design), pickers, overrides with the duration validator, and the run landing beside the batches with its **Phase** chip.

The Operation and Unit Procedure forms are the same shape: an equipment-only template picker, and (for Unit Procedure) the Reason field that production mode requires for the 21 CFR Part 11 signature.

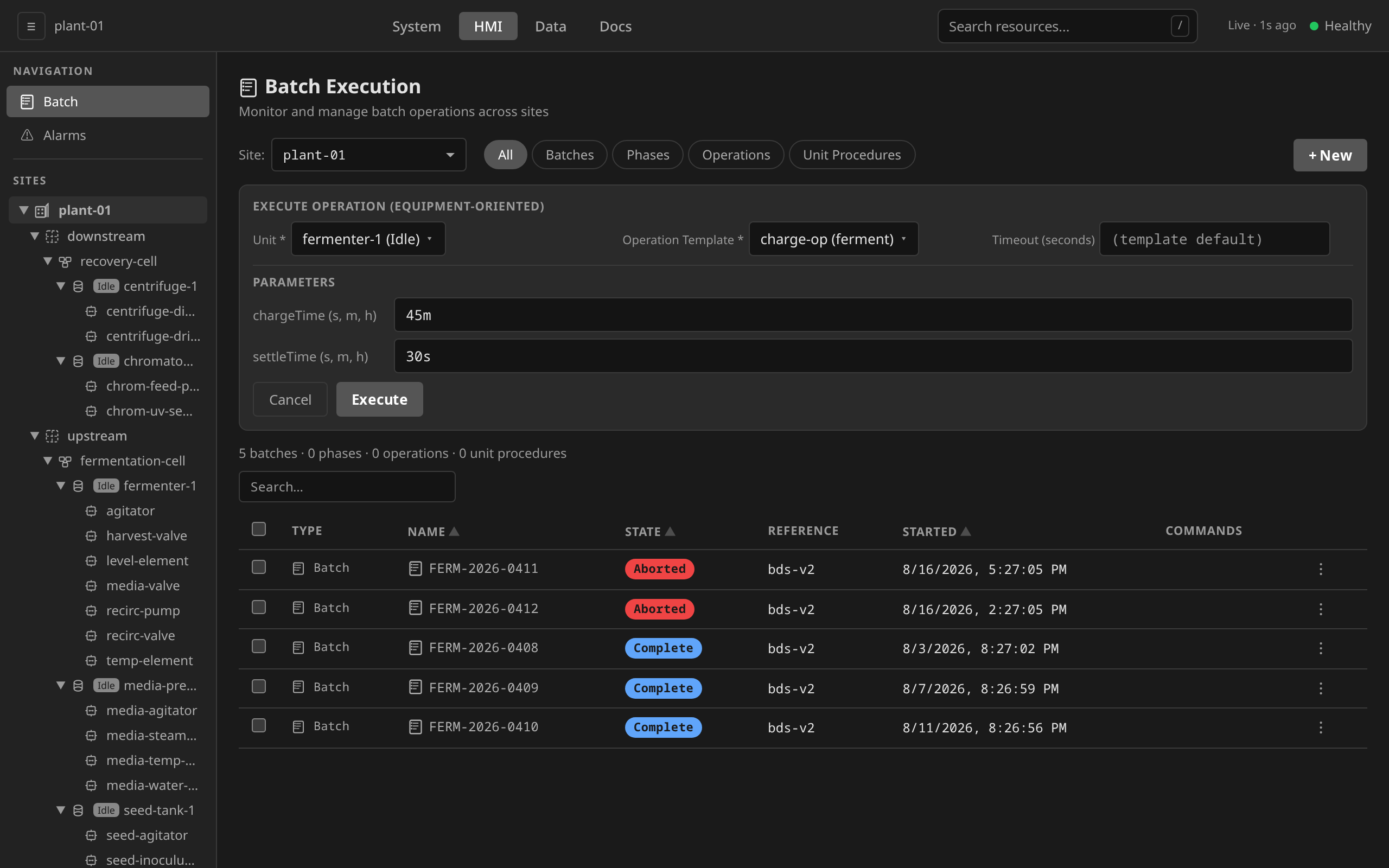

Ad-hoc Operation launch form: equipment-only template picker with the process-category template absent, declared parameters as override rows

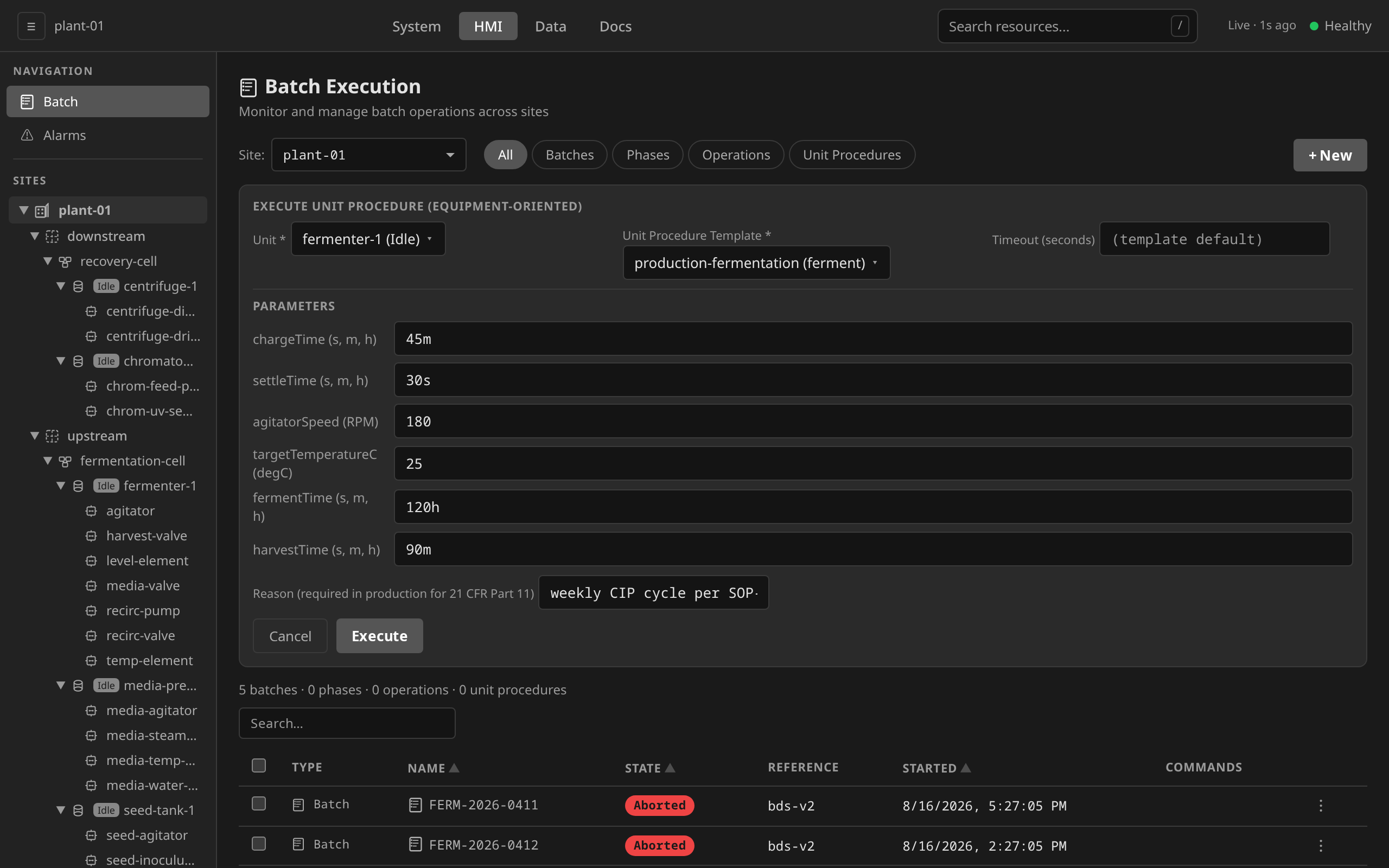

Ad-hoc Unit Procedure launch form: equipment-only template picker, parameter overrides, and the Reason field required in production for 21 CFR Part 11

# Ad-hoc Phase (operator role)
dcs execute phase \
  --unit reactor-1 \
  --template purge-with-N2 \
  --param duration_seconds=120 \
  -s houston-plant

# Ad-hoc Operation (lead-operator role; OperationTemplate must be category=equipment)
dcs execute operation \
  --unit reactor-1 \
  --template cip-cycle \
  --param caustic_temp_c=80 \
  -s houston-plant

# Ad-hoc UnitProcedure (lead-operator + production e-signature)
dcs execute unitprocedure \
  --unit reactor-1 \
  --template full-cleaning-cycle \
  --reason "weekly CIP per SOP-CL-014" \
  -s houston-plant

# Ad-hoc Phase
curl -X POST /api/v1/sites/houston-plant/units/reactor-1/execute-phase \
  -H "Content-Type: application/json" \
  -d '{"phaseTemplateRef":"purge-with-N2","parameterValues":[{"name":"duration_seconds","value":"120"}]}'

# Ad-hoc Operation
curl -X POST /api/v1/sites/houston-plant/units/reactor-1/execute-operation \
  -H "Content-Type: application/json" \
  -d '{"operationTemplateRef":"cip-cycle"}'

# Ad-hoc UnitProcedure (production mode requires reason + fresh OIDC token)
curl -X POST /api/v1/sites/houston-plant/units/reactor-1/execute-unitprocedure \
  -H "Content-Type: application/json" \
  -d '{"unitProcedureTemplateRef":"full-cleaning-cycle","reason":"weekly CIP per SOP-CL-014"}'

What gets created¶

The gateway instantiates the procedural tree as parentless resources (no OwnerReferences to a Batch). Children carry the parent's name in the usual OperationRef / UnitProcedureRef spec fields, plus these labels:

Label	Purpose
`dcs.io/adhoc=true`	Marks this as ad-hoc; powers the `?adhoc=true` list filter
`dcs.io/unit=<unit>`	The target Unit
`dcs.io/phase-template` / `dcs.io/operation-template` / `dcs.io/unitprocedure-template`	Source template name

Reconcilers do not require a Batch owner. The same SFC chart-walking and unit state-mirroring run, just without a Batch context.

Commanding a running ad-hoc execution¶

A batch is commanded through its Batch resource, which forwards the command down the procedural tree it created (ISA-88 Clause 7.3.2). An ad-hoc run has no Batch, so its root is commanded by name: the Phase, Operation or UnitProcedure that the launch created at the top.

This matters most when a run stops on its own. Any chart error (a guard that cannot be evaluated, a step budget overrun, a failed step action) self-holds the element, and a held run needs an operator decision to leave that state:

Command	Effect
Restart	Resume the chart from where it held (see the caveat below)
Stop	Run the stopping chart to a controlled `Stopped`
Abort	Go to safe state immediately, ending at `Aborted`

Only the root accepts commands. The children of an ad-hoc Operation or UnitProcedure are refused with 400 Bad Request naming the root to command instead. Commanding a child would diverge it from the parent that is sequencing it, which is the same failure the Batch rule exists to prevent. Deleting a held run is not a recovery: it destroys the execution record and reaches no ISA-88 terminal state.

A restarting chart re-commands one step's posture

Restart replays the element's restartingChart, which is a single program for a phase that may have several steps. If the chart drives the equipment posture of one step, restarting into a different step can leave the run unable to satisfy its own transition condition. Where that applies, Stop or Abort and relaunch.

UICLIAPI

/hmi → Batch in the sidebar → the run's row in the unified execution list. The Commands cell carries the commands valid for the current ISA-88 state, the same way a batch row does. Opening the run shows the same set in a Commands section on its detail.

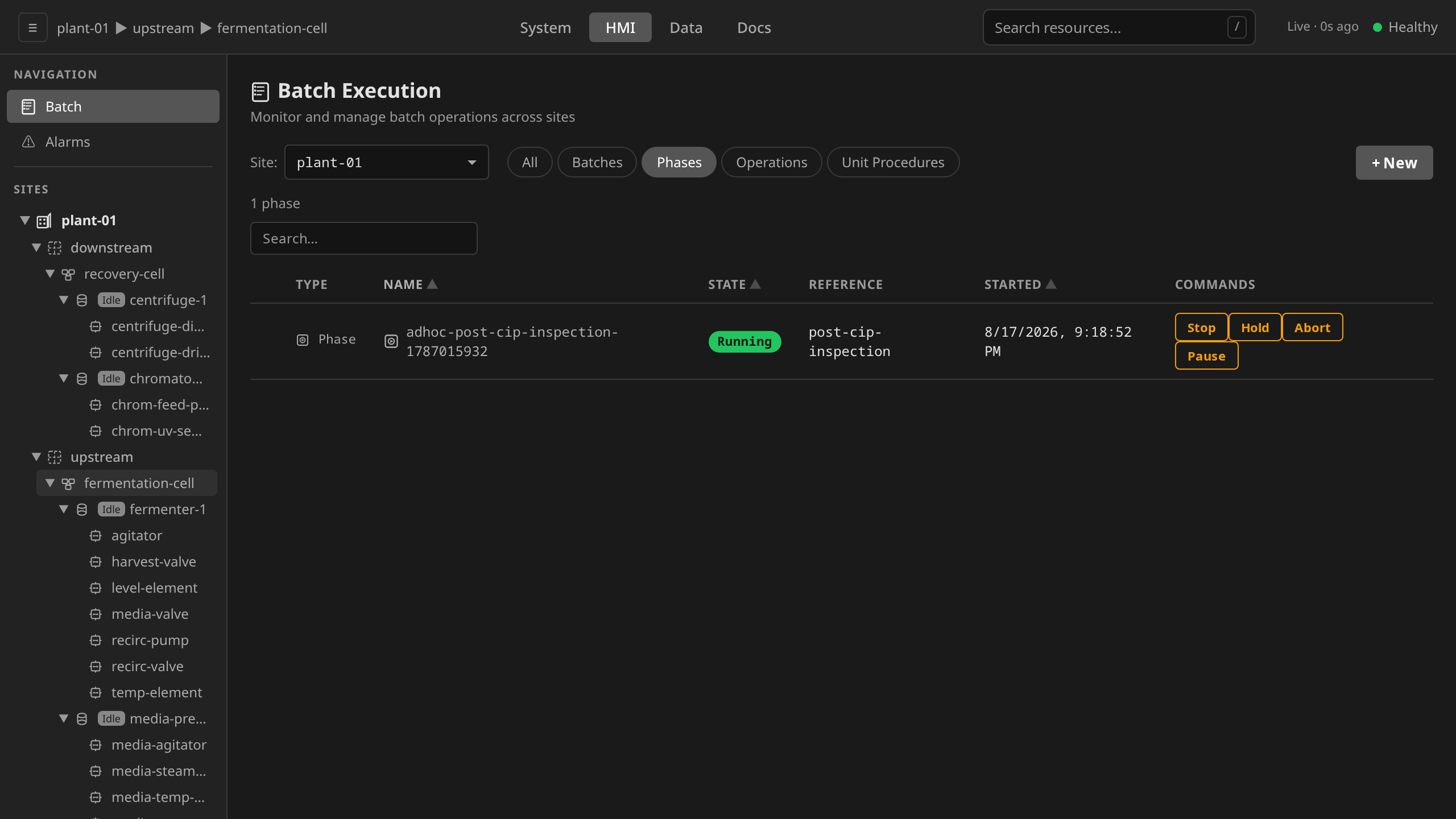

HMI Batch Execution filtered to Phases: an ad-hoc post-CIP inspection running on the seed tank, its row carrying the Stop / Hold / Abort / Pause command bar a batch row would

Rows for the children of an ad-hoc Operation or Unit Procedure appear in the same list and carry an empty command cell by design. Command the root.

Irreversible commands (Stop, Abort) go through the reason ceremony that 21 CFR Part 11 §11.10(e) requires, exactly as they do for a batch.

# Restart a self-held ad-hoc phase
dcs command Phase adhoc-purge-with-n2-1754870400 Restart -s houston-plant

# Abort it instead (irreversible commands require --reason)
dcs command Phase adhoc-purge-with-n2-1754870400 Abort \
  --reason "N2 header pressure lost; ending the purge" \
  -s houston-plant

# Same for an ad-hoc Operation or UnitProcedure root
dcs command Operation adhoc-op-cip-cycle-1754870400 Stop \
  --reason "line needed for production" -s houston-plant

dcs get phases lists the live phases with their states. An ad-hoc root is the one with an empty OPERATION column. That column is the parent ref, so anything with a value there is a child and must be commanded through its owner.

curl -X POST /api/v1/sites/houston-plant/command \
  -H "Content-Type: application/json" \
  -d '{"kind":"Phase","name":"adhoc-purge-with-n2-1754870400","command":"Restart"}'

Valid kinds are Batch, Phase, Operation and UnitProcedure, the last three only when the named resource is an ad-hoc root. Unit and Procedure are never accepted. A name that does not exist returns 404 Not Found. The WebSocket command frame applies the identical rule (see SCADA Integration).

Audit trail¶

Every ad-hoc execution emits an AuditRecord with a category label so the audit-trail UI can filter:

dcs.io/audit-category=adhoc-phase
dcs.io/audit-category=adhoc-operation
dcs.io/audit-category=adhoc-unitprocedure

UnitProcedure ad-hoc in production mode carries an electronicSignature block with meaning: ad-hoc-execution, the signer's identity, the digest of the canonical UP spec, and the keystore key ID, meeting 21 CFR Part 11 §11.200.

The ceremony runs below, in production mode with real authentication, where the signed-in session is the signing credential:

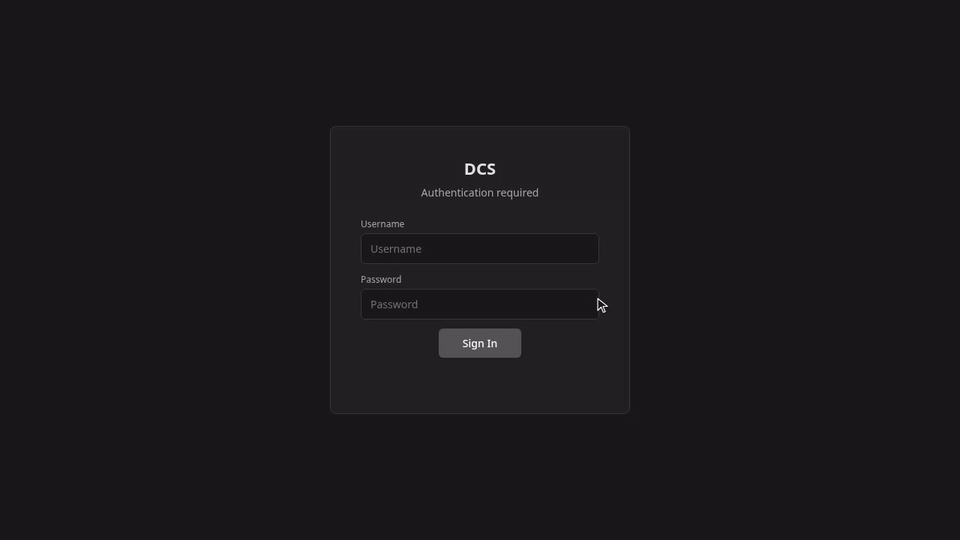

The production-mode ad-hoc Unit Procedure ceremony: a supervisor authenticates on the product login page, opens + New Unit Procedure, picks the idle fermenter and the equipment-category template from the unrolled lists, types the required reason, Executes, the ad-hoc tree appears in the unified list, and the /data audit trail's expanded record shows the Electronic Signature card with the signer's name and meaning ad-hoc-execution — The compliance anchor filmed for real: the required **Reason**, **Execute**, and the audit record's **Electronic Signature** card with `meaning: ad-hoc-execution`, signed by the authenticated supervisor.

Parameters are override-only¶

You pick an existing template and override its declared parameters at launch. The CLI/API will silently drop entries whose names are not in the template's Parameters interface. The template defines the schema. Ad-hoc execution is not a vehicle for new parameters. To add a new parameter, edit the template under change control.

Cleanup on partial failure¶

UnitProcedure instantiation creates child Operations and grandchild Phases. If any child Create fails partway through (missing PhaseTemplate, CM-role mismatch, etc.) the gateway deletes already-created children before returning the error. A failed launch therefore does not leak orphan resources.

Why Procedure-level is excluded¶

A full Procedure is, by definition, the executable form of a recipe. Running one ad-hoc has the same operational footprint as a batch but produces no Batch resource and therefore no BatchRecord. That is the wrong default for a 21 CFR Part 11 system. The regulator expects every product-affecting run to be tied to a batch record. If you find yourself wanting a one-off Procedure, the right answer is a one-off recipe approved through change control and run as a Batch.
